JANUARY 2006
January 7

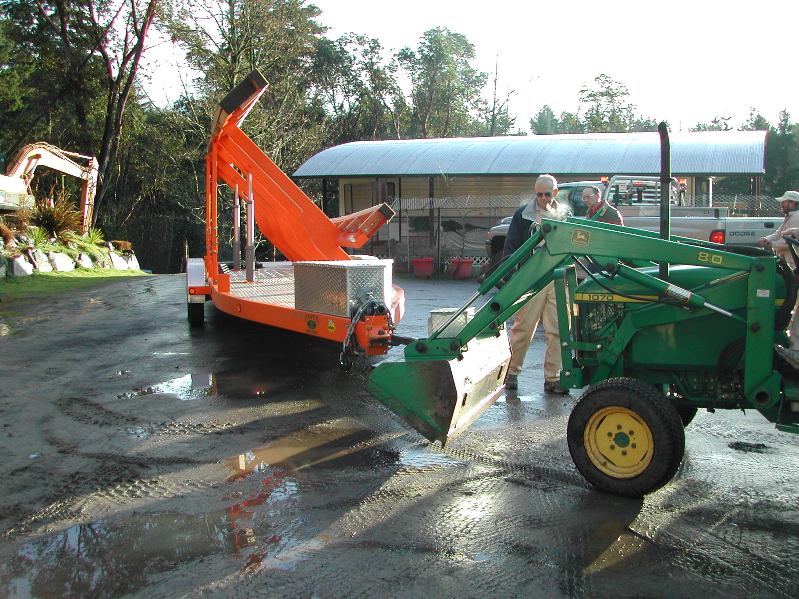

The trailer at Wheelers
|
January 7

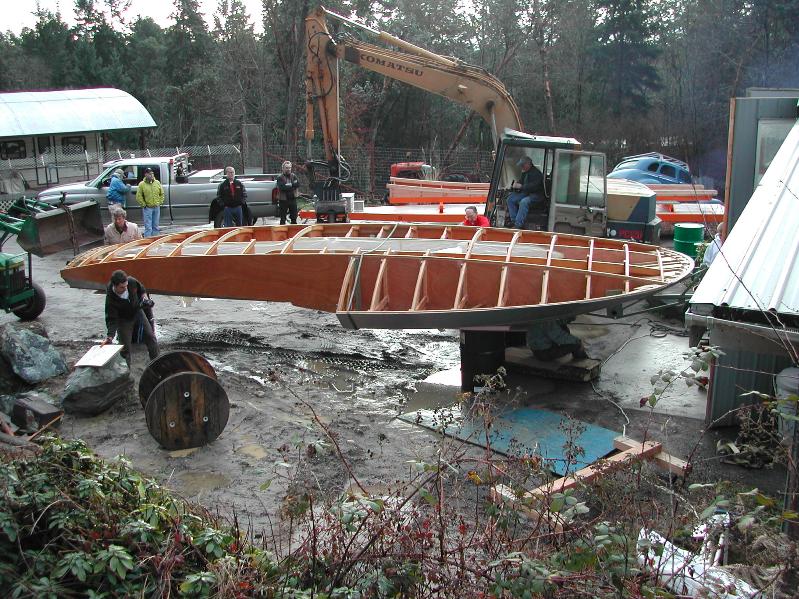

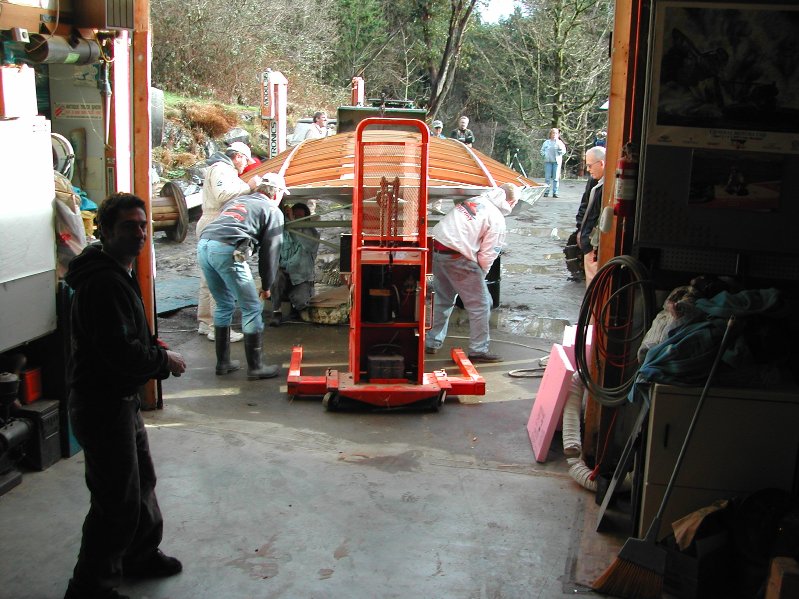

Step 1
Out and Rolled!
(see video)
|
January 7

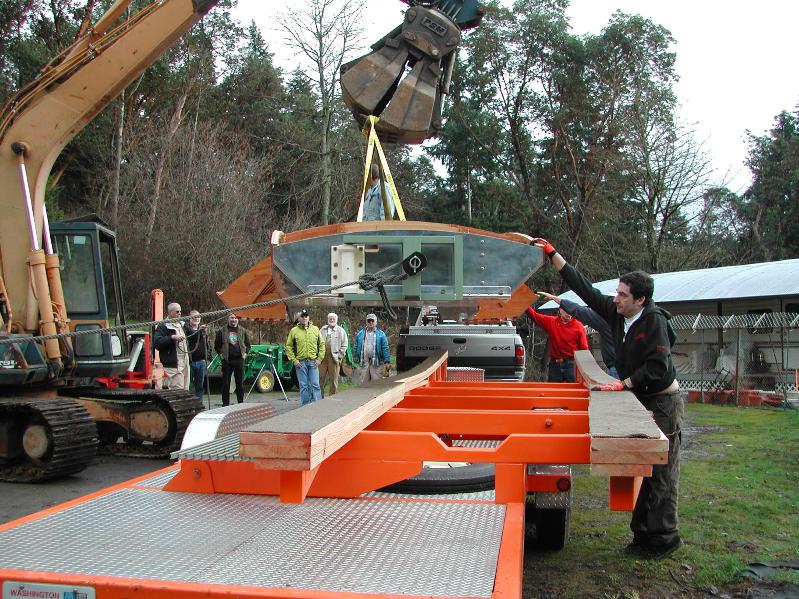

Next move...to the trailer
|
January 7
View from an empty shop (first time in 2+ years)
|
January 7
Almost there
|
January 7

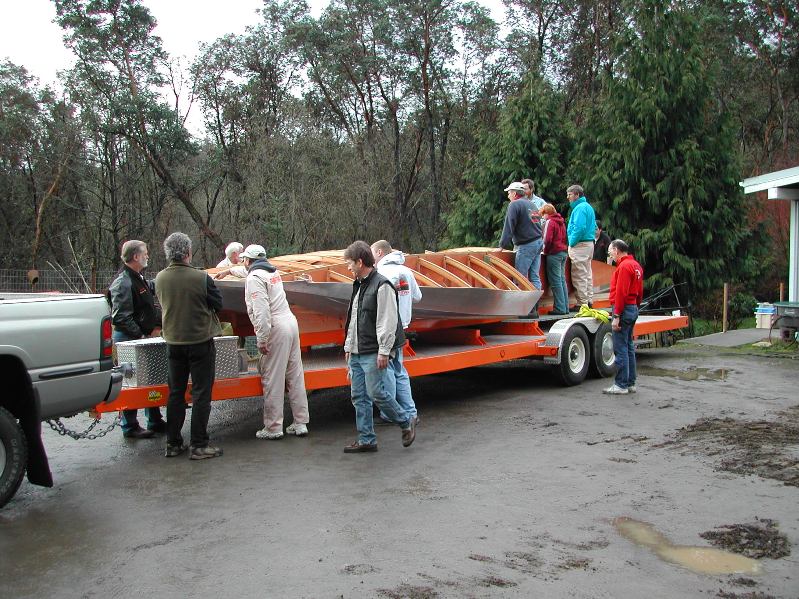

Step 2

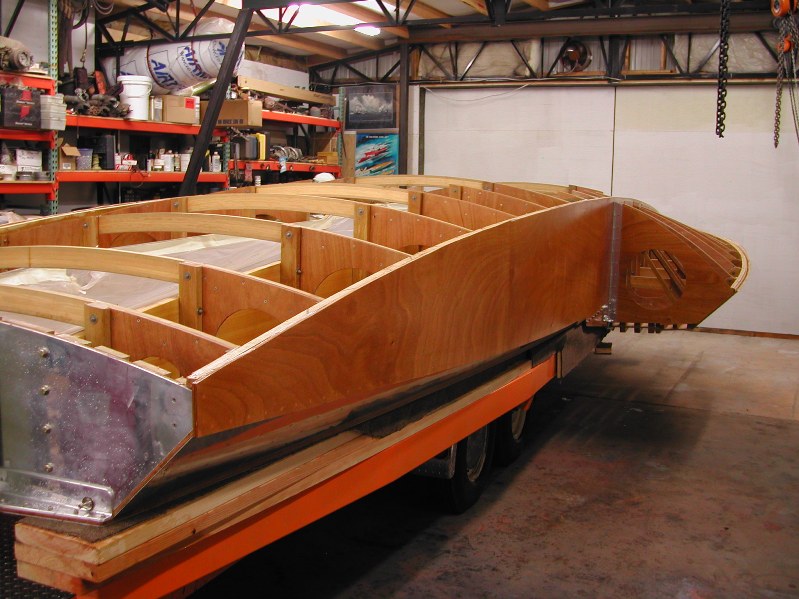

ON the trailer
|
January 7
Step 3

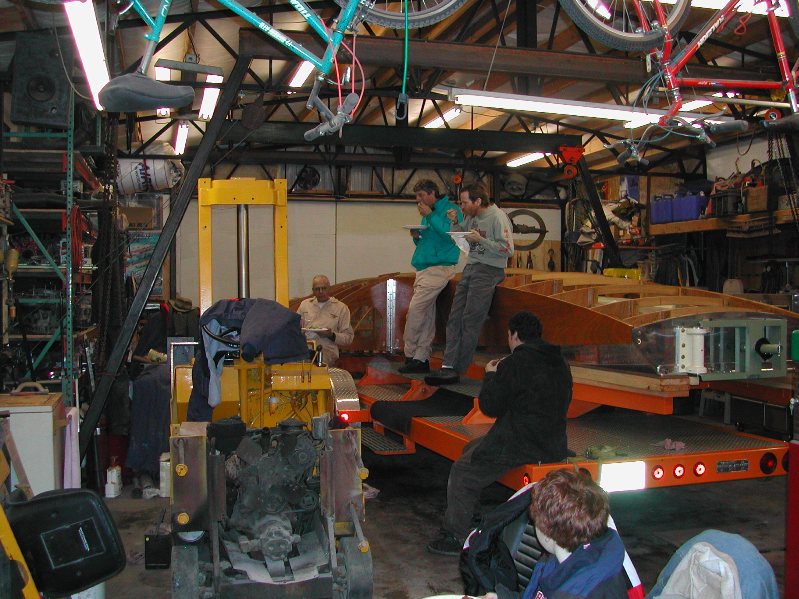

In Larrys shop
|
January 7
Larry, Peter, Rob and Alan - it's lunch time!
|
January 21

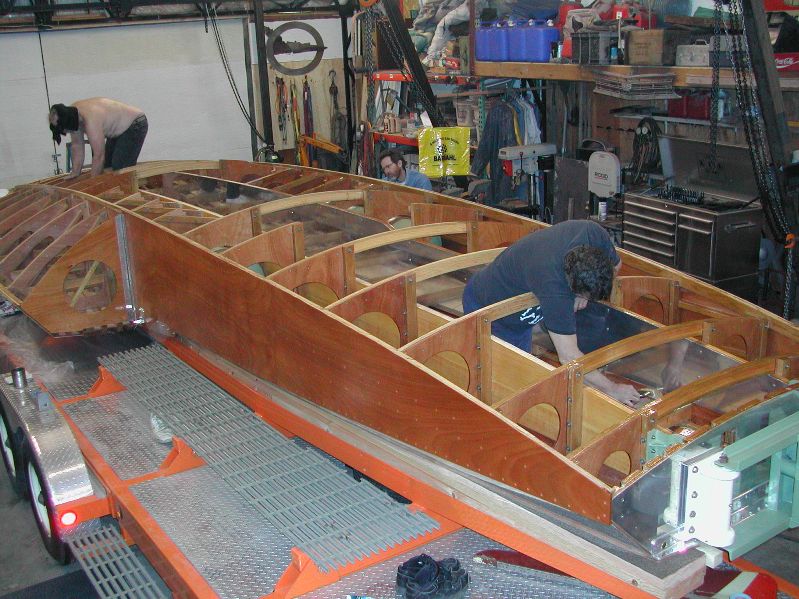

Chief, Scooter and a drop-in helper Tom, sealing the interior
|
January 21

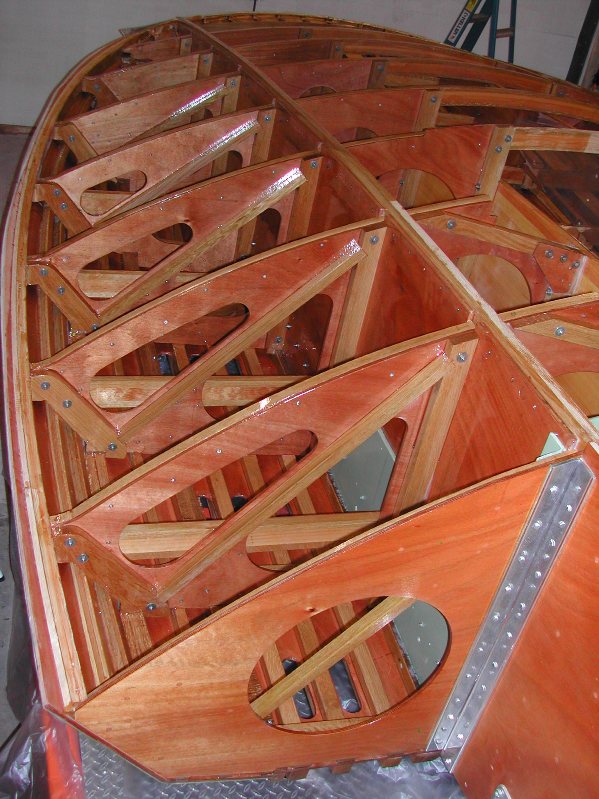

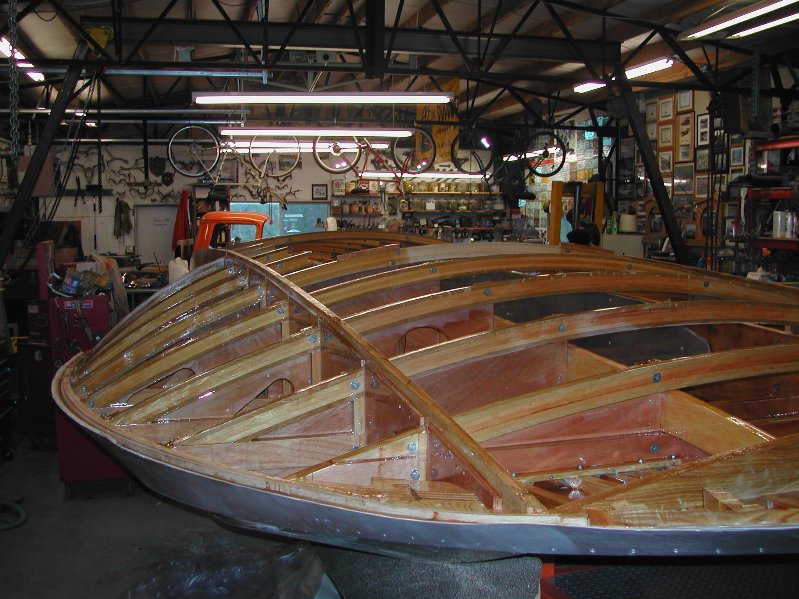

Completed! (view from back)
|
January 21
Completed! (view from front)
|
January 21
Spoiler
|
January 21
|
January 21
|
January 21
Chiefs "new"look
|
January 28

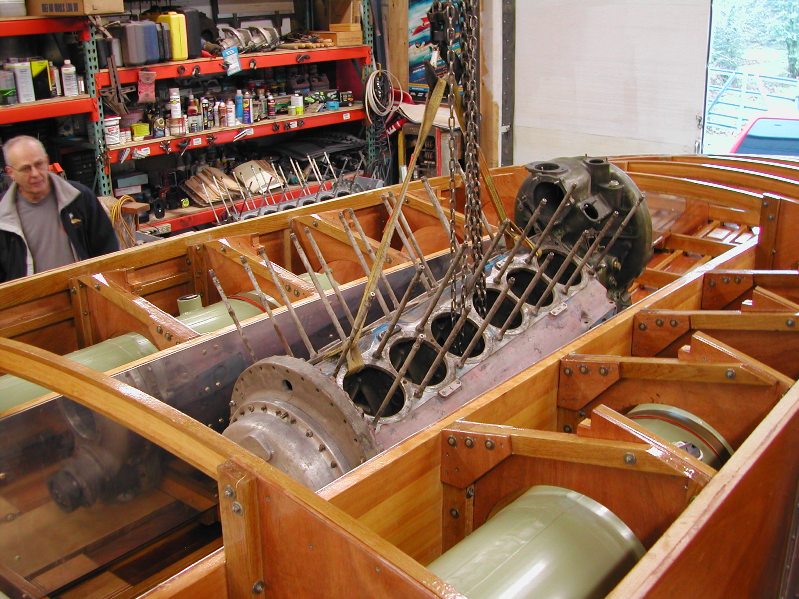

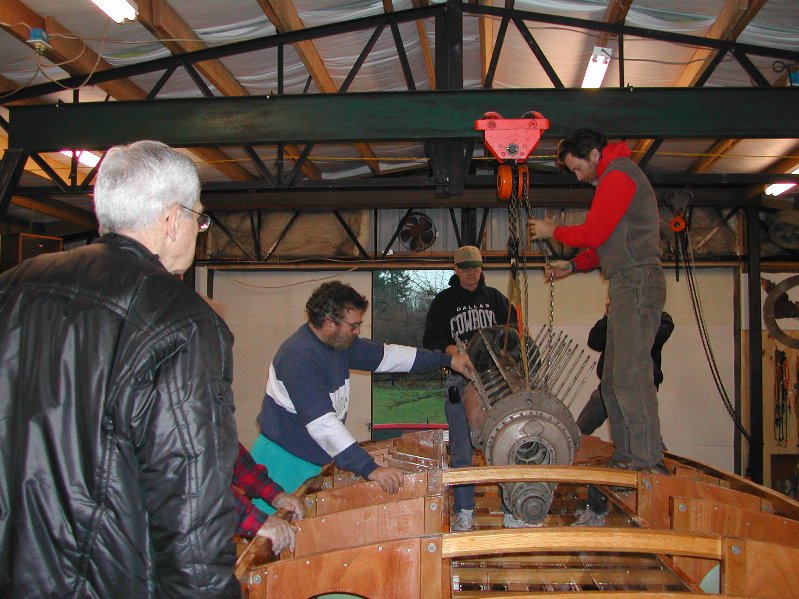

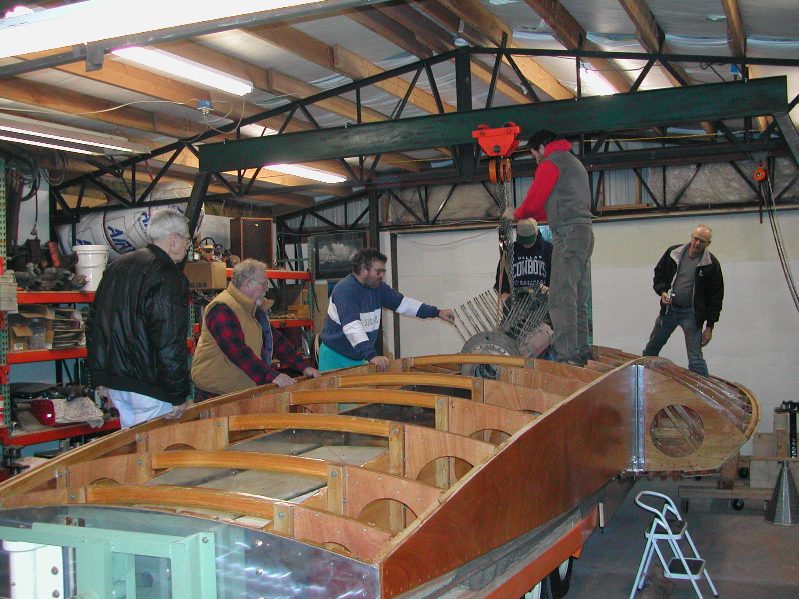

Ron Jones SR. watching as we lower our mock up engine into the boat for gearbox location
|
January 28
Lower...lower...lower...lower...
oh boy!
|
January 28
In position (well...sort of)
|
January 28
Ron and Rob discussing Strut location
|
January 28

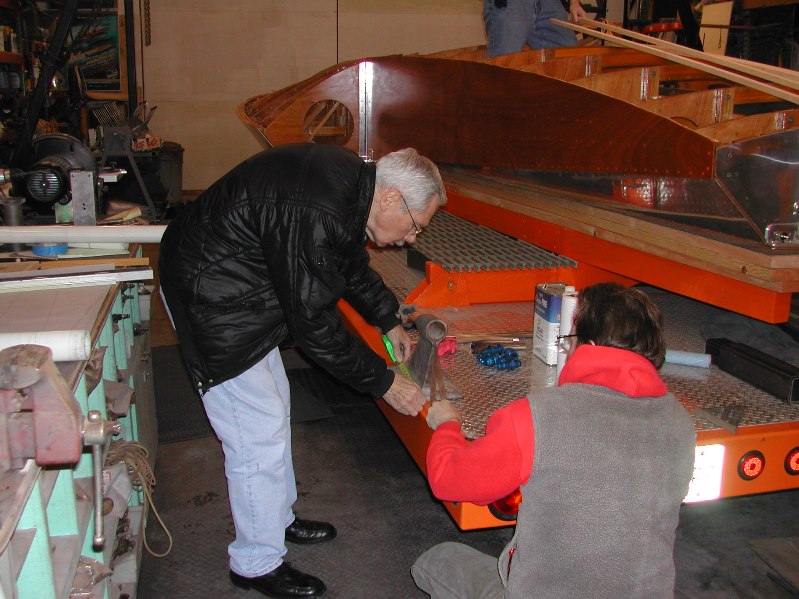

Ron checking to see if the strut we have will work...it won't!
|
MARCH 2006
March 4
Checking the new configuration.
|
March 4

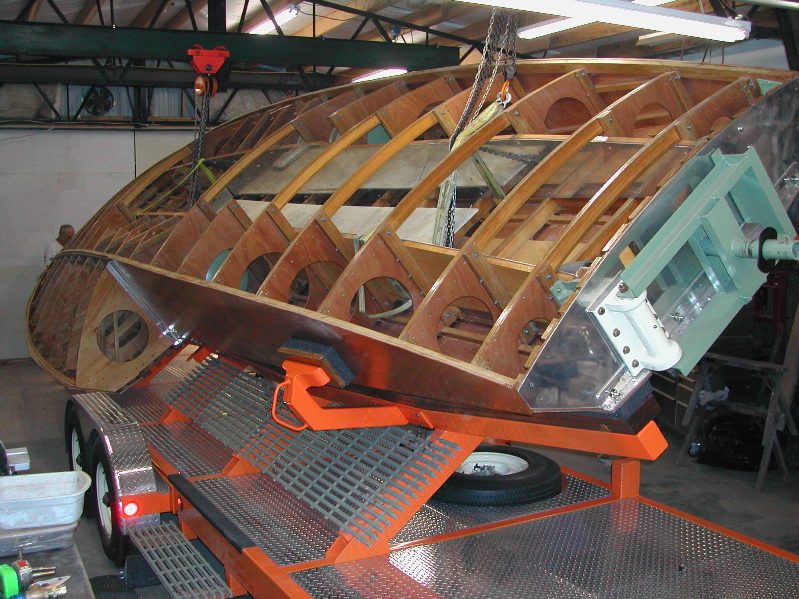

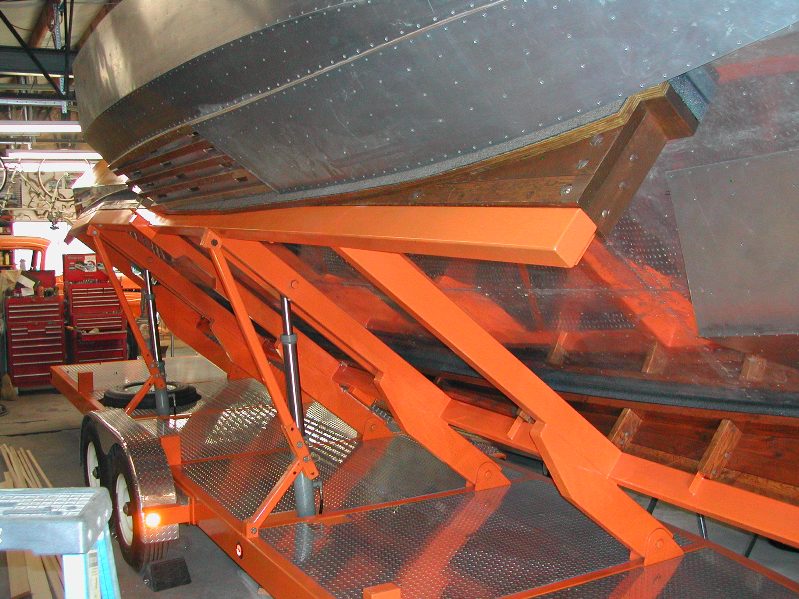

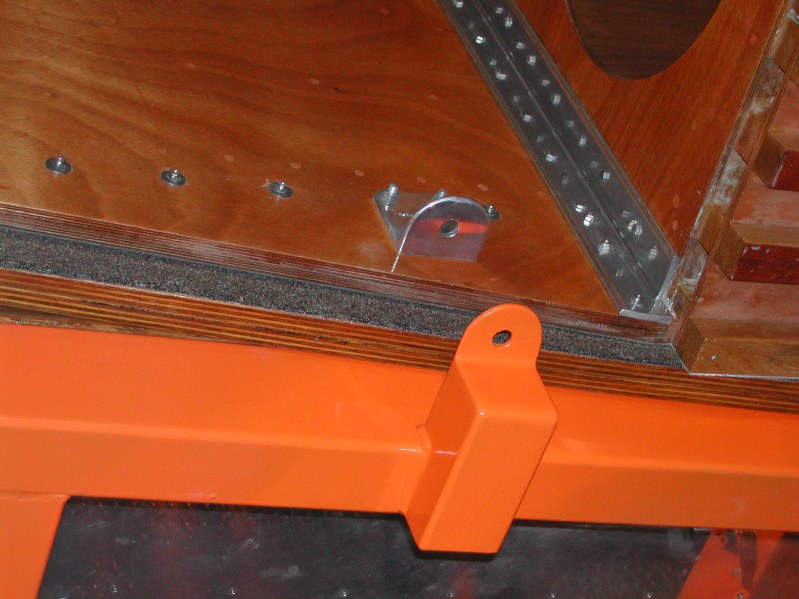

Hold downs
|
March 4
Sponson support side
|
March 4
Almost full tilt in Larry's shop
|
March 4

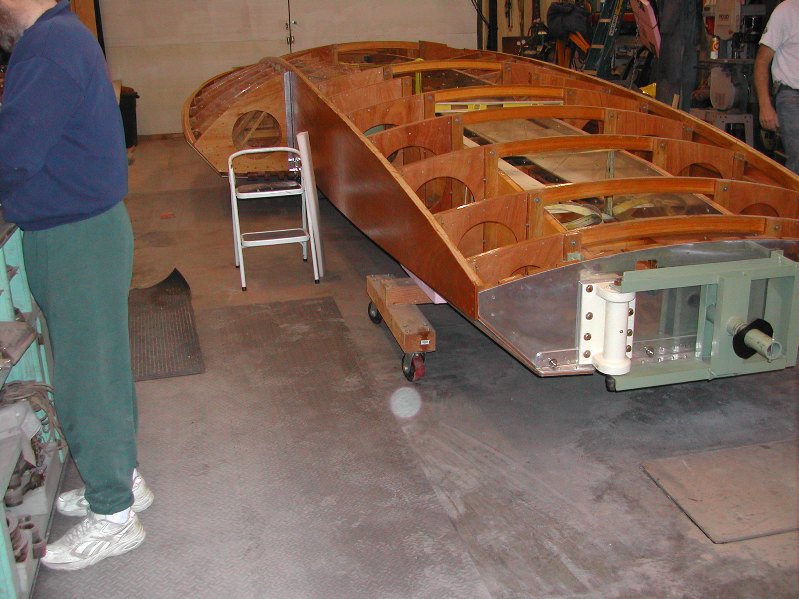

Trailers out, hull is now on Dixon's roll arounds
|
March 4
Front view
|
March 4

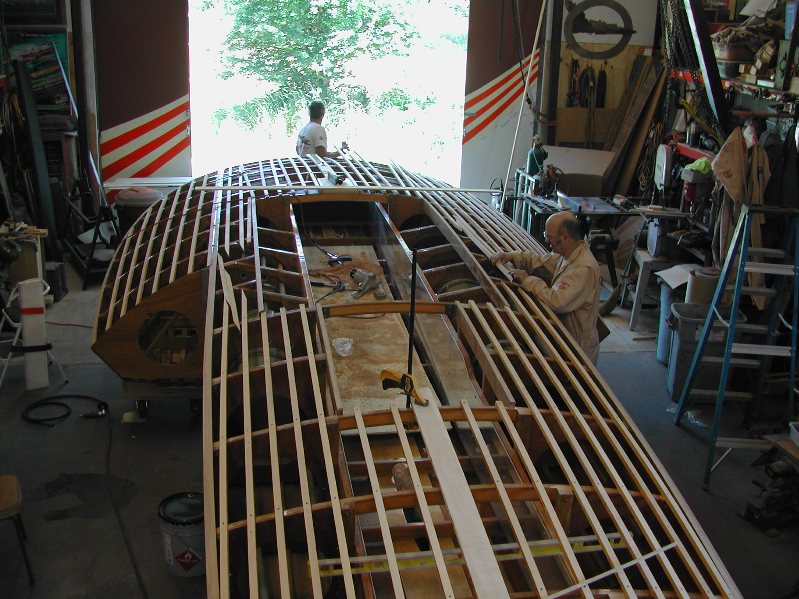

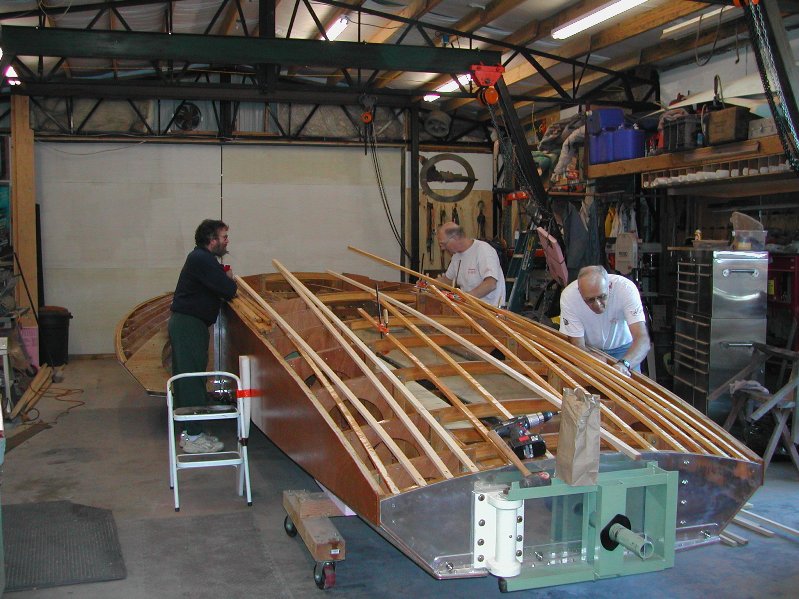

Chief, Steve and Larry working on dry fitting the aft battens
|
March 4
New engine parts by Ron Brown
|
March 4

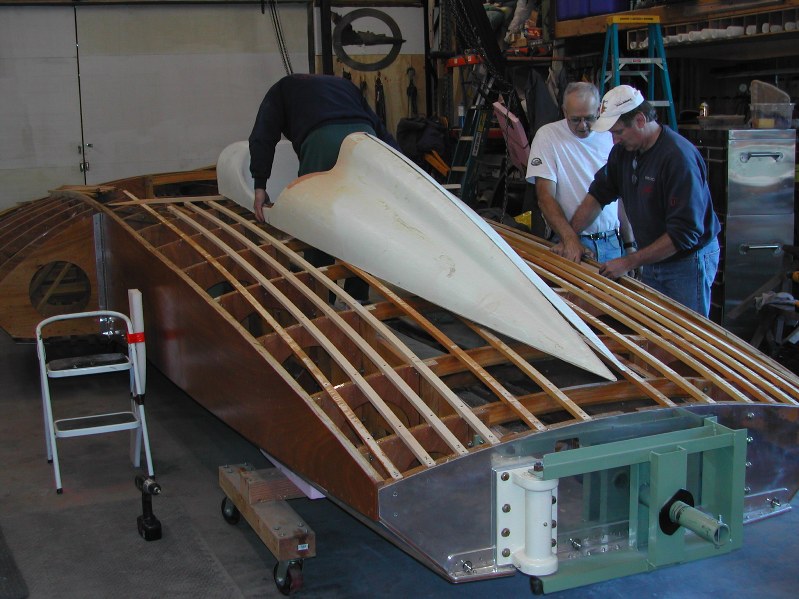

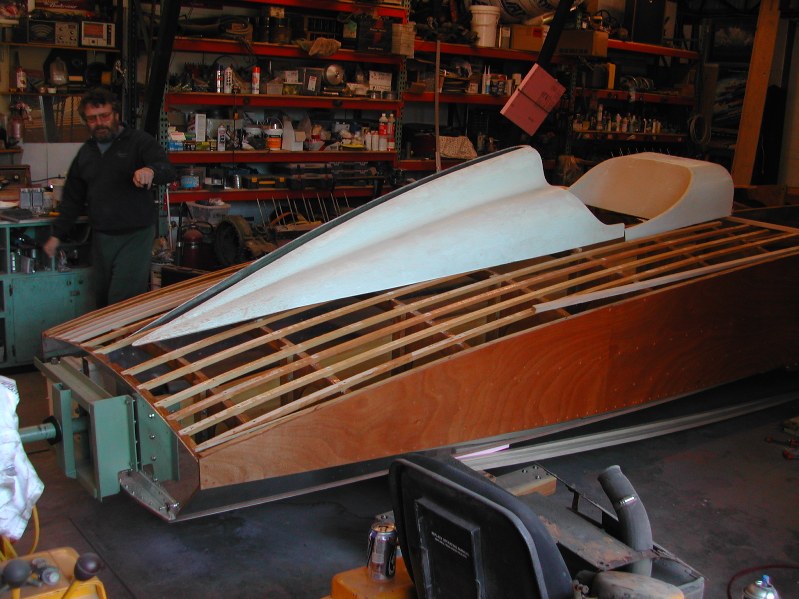

After the aft battens were fitted, Chief just couldn't resist breaking out the cowlings.
|
March 4
Chief REALLY can't wait!
|
March 4
Ahhhh...to dream of what will be
|
March 11

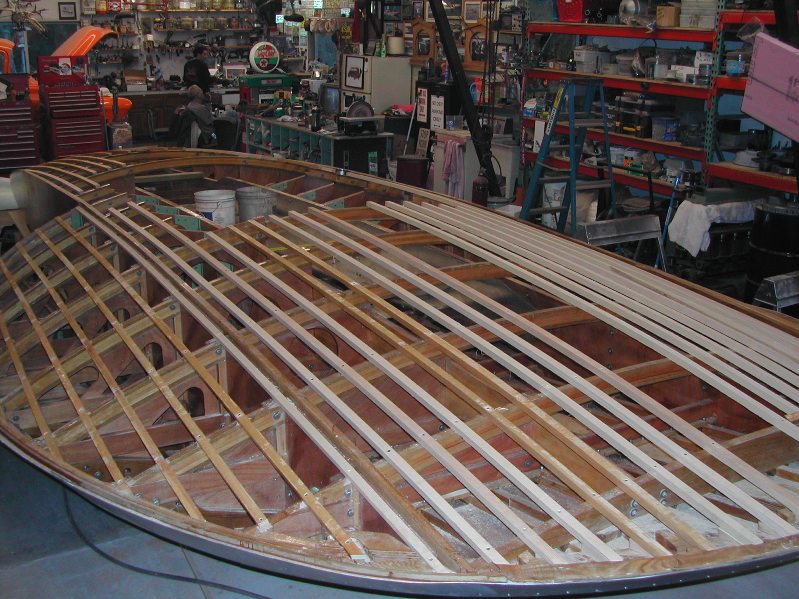

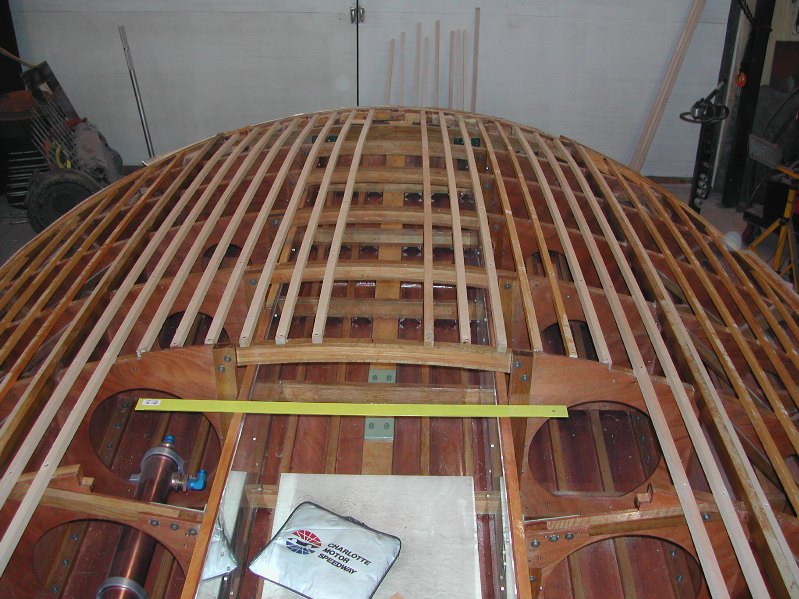

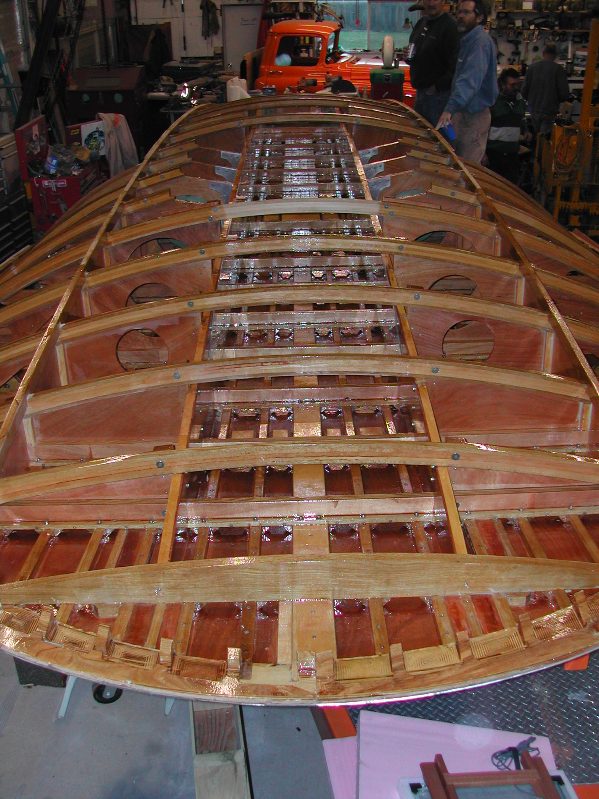

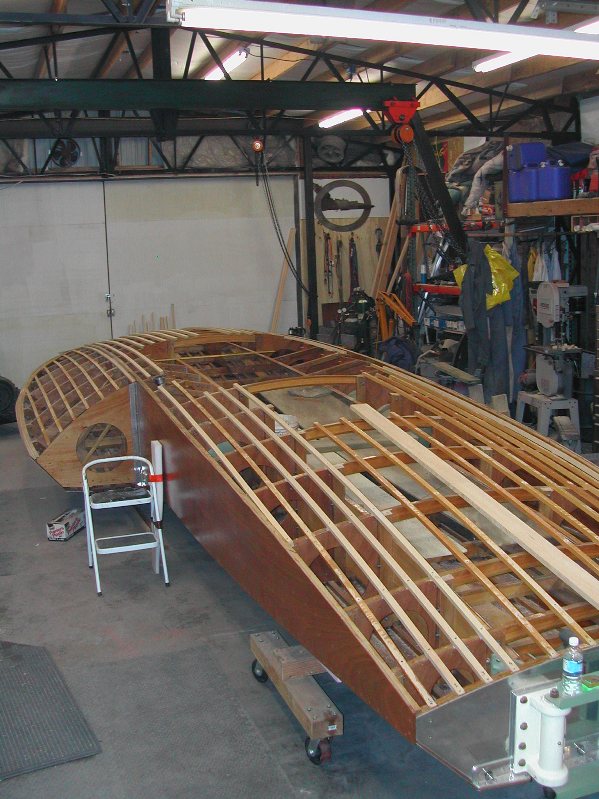

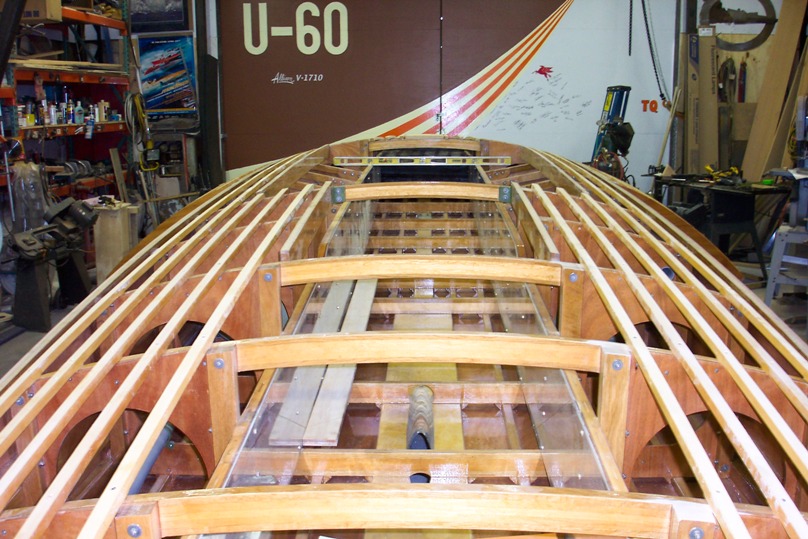

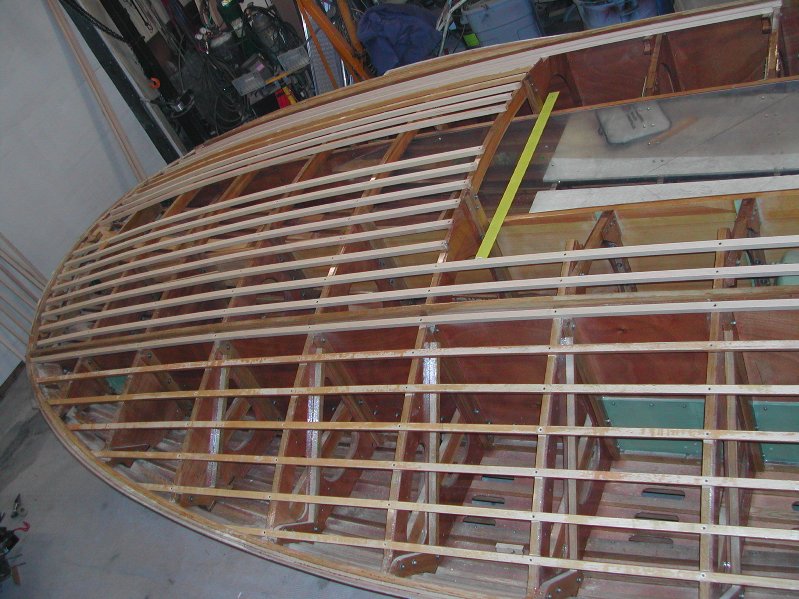

Battens, Battens and MORE Battens!
|
March 11
|
March 11
|
March 11
|
March 11
|
APRIL 2006
April 1
Engine & Hull together for the first time!
|
April 1

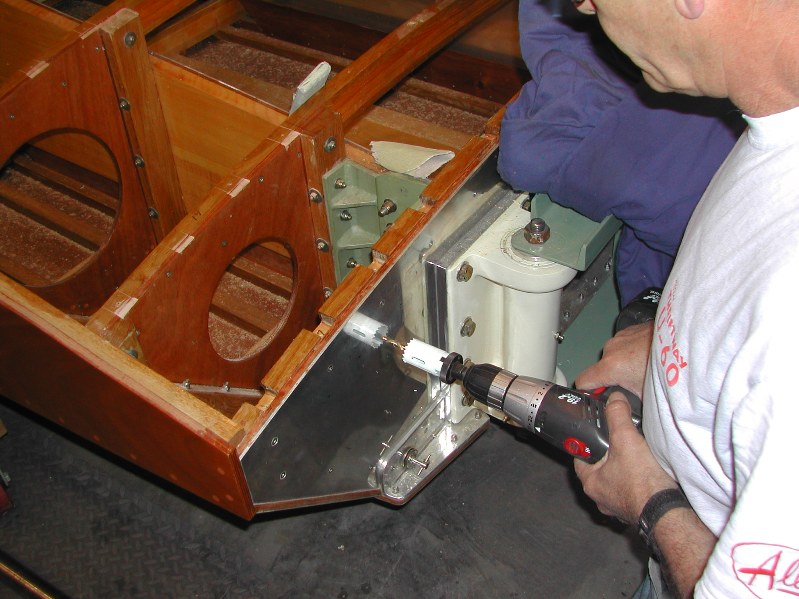

Larry getting ready to drill the hole for the thru hull rudder water pickup fittings.
|
April 1
Fitting plate in place.
|
April 1
Water pickup from the right sponson (just above the fuel tank)
|
April 1
Fittings in place
|
April 1

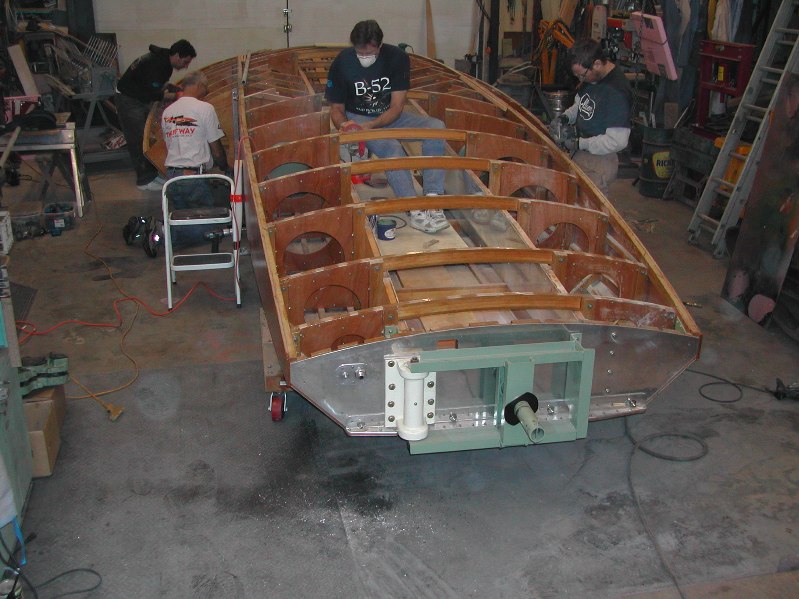

Alan and Larry working on the right sponson water pickup - Stuart and Rob sanding the interior getting ready to apply the final seal coat.
|
April 1
Skid Fin
|
April 1
Skid Fin
|
April 8

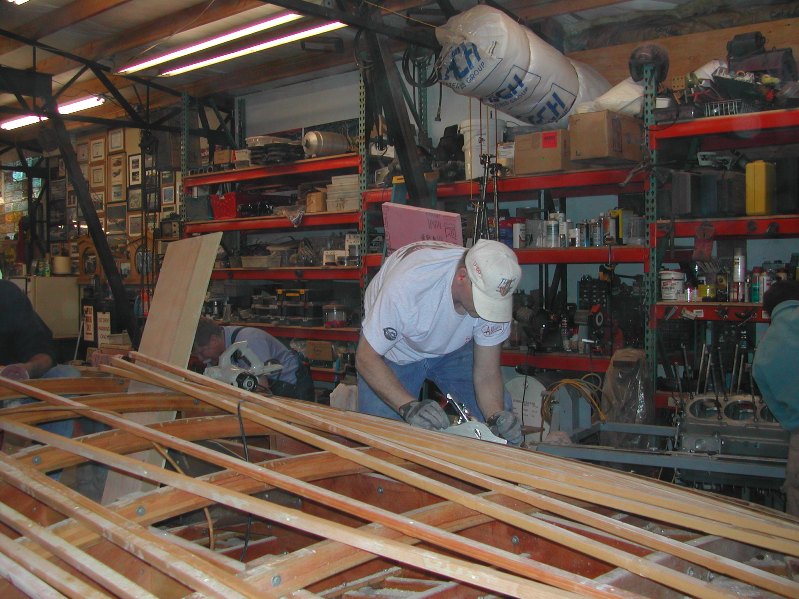

Steve hand planing one of the battens
|
April 8

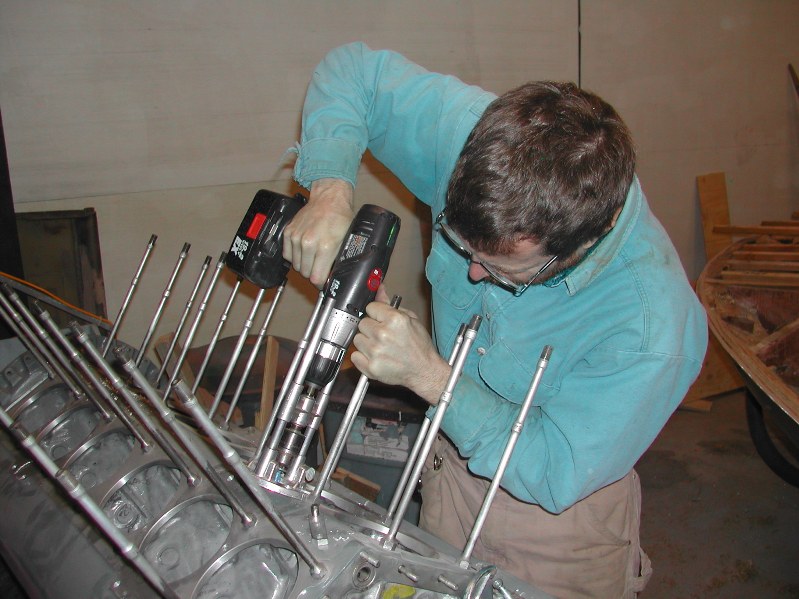

Rob drilling a pin hole on the second engine
|
April 8
Hand plane shavings
|
April 8
Steve Checking the batten alignment
|
April 15
Rob drilling holes for the hose raceway
|
April 15

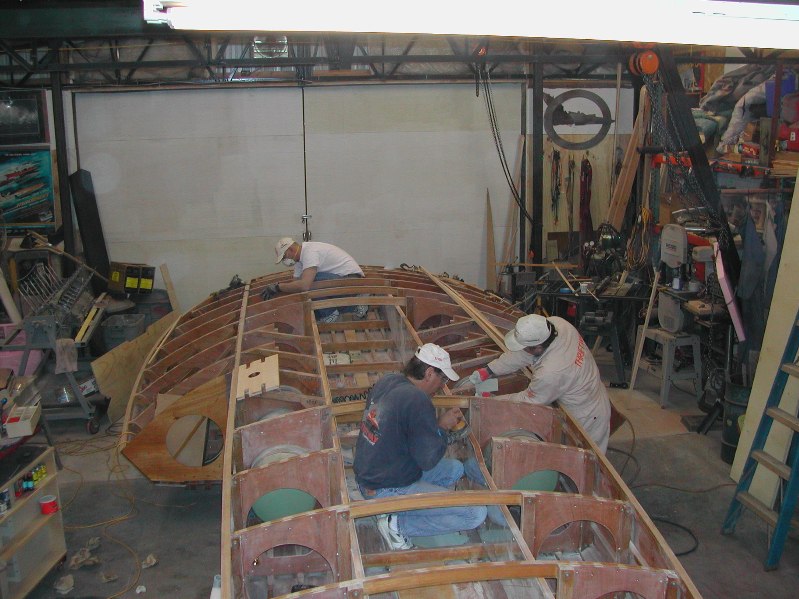

Sand, Sand, Sand, Sand...
|
April 15

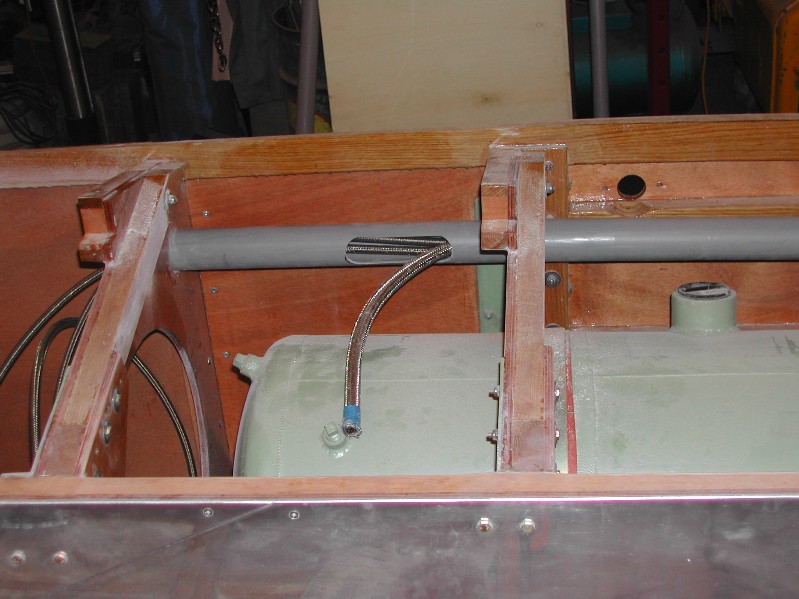

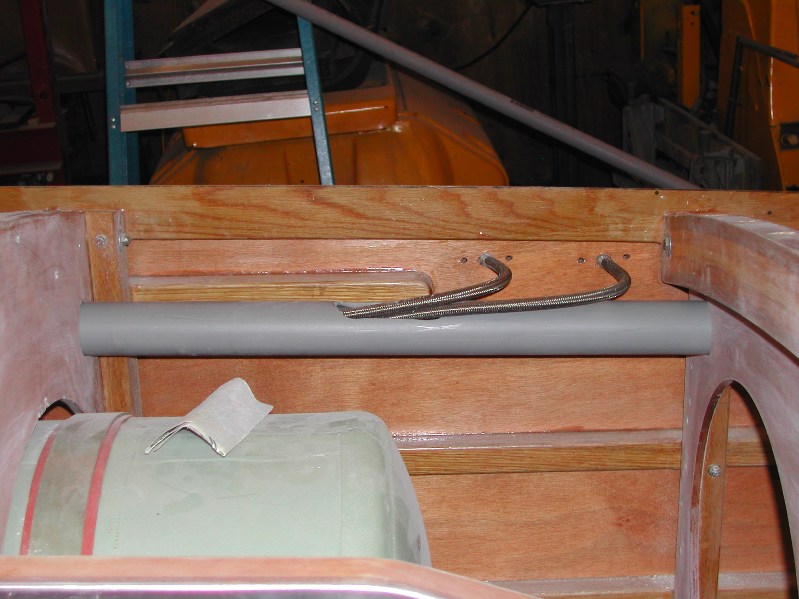

Engine bank cooling overboard discharge
|
April 15
Bank discharge lines and fule pump return line
|
April 15
Fuel pump return line
|
April 22

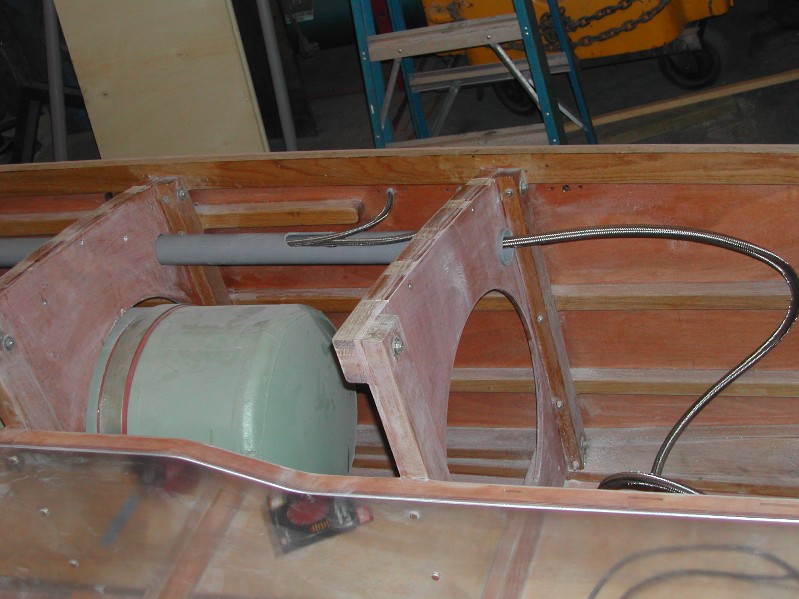

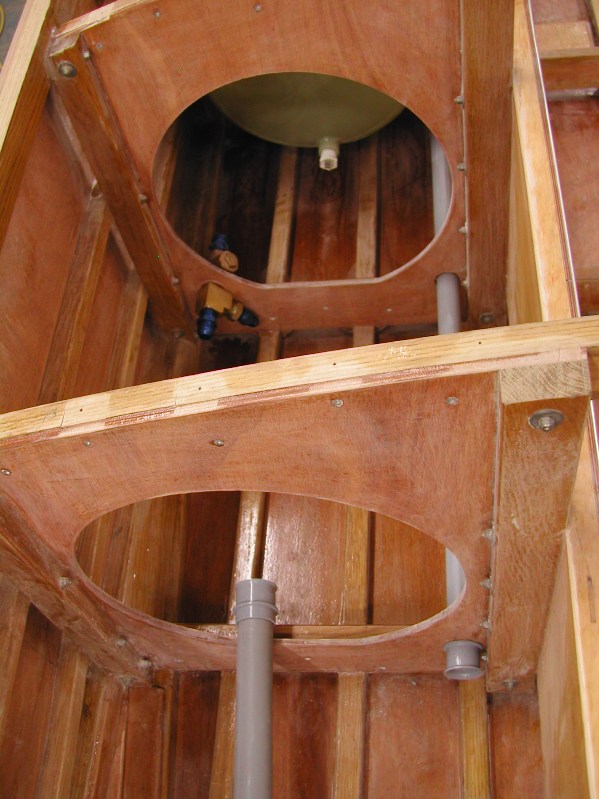

More hose support conduit
|
April 22
Water hose
Battery cable
Stuffing box cooling check valve
|
April 22

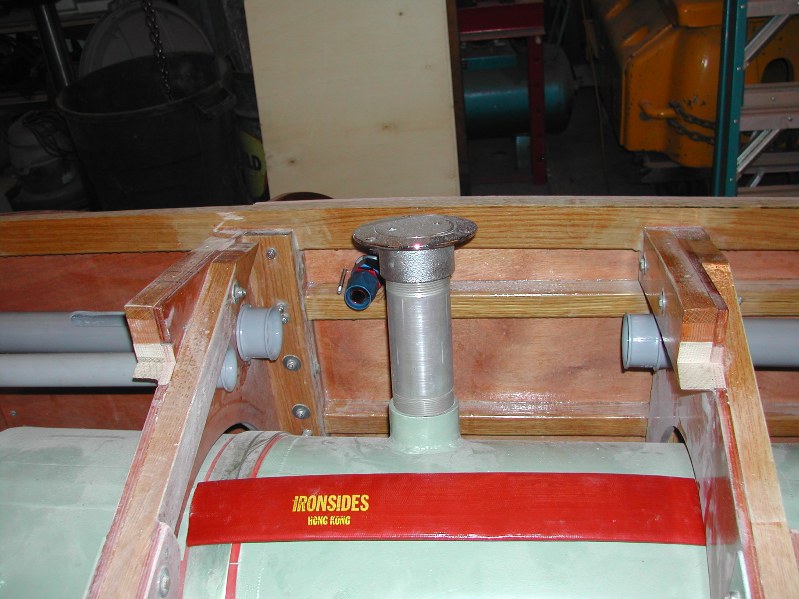

Right side fuel spout & cooling discharge
|
April 22

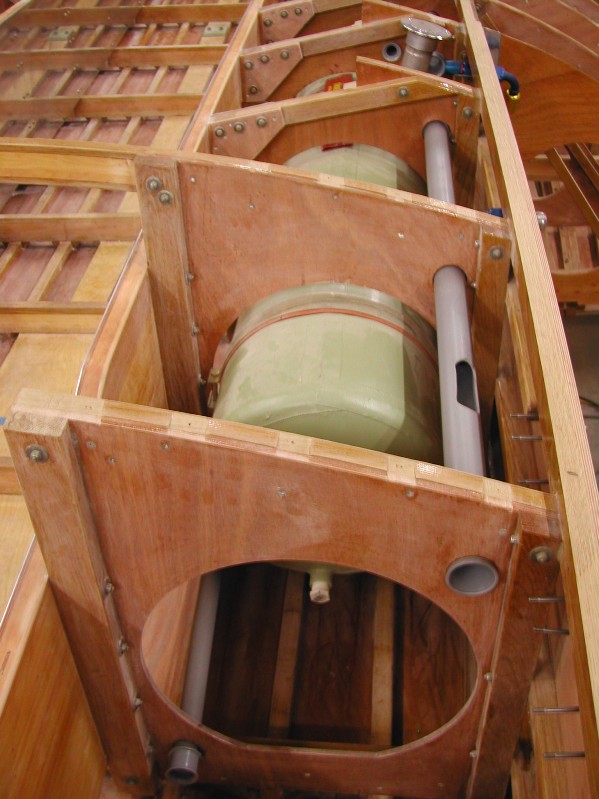

Hoses will droop in this area to clear the intake hose & fuel spout
|
April 22

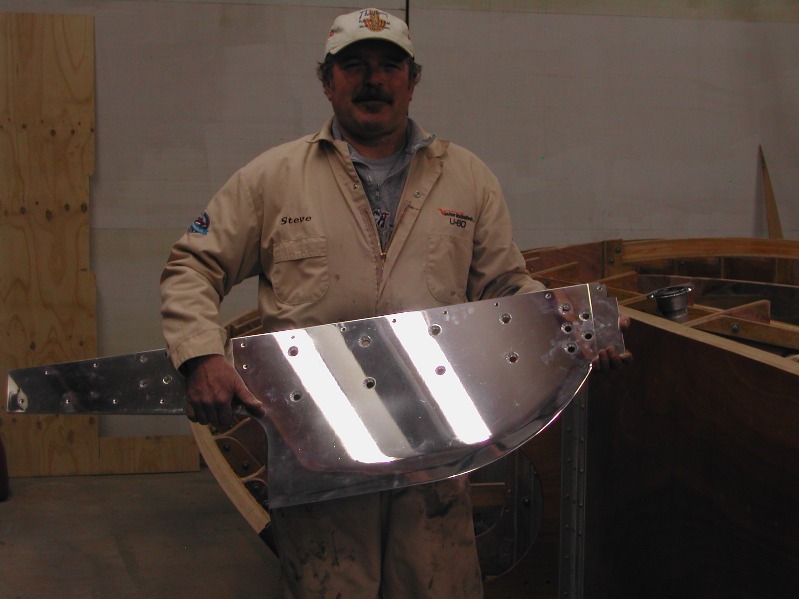

Chief with skid fin
|
April 22
SHARK!
|
April 22
Ready to roll
|
April 22

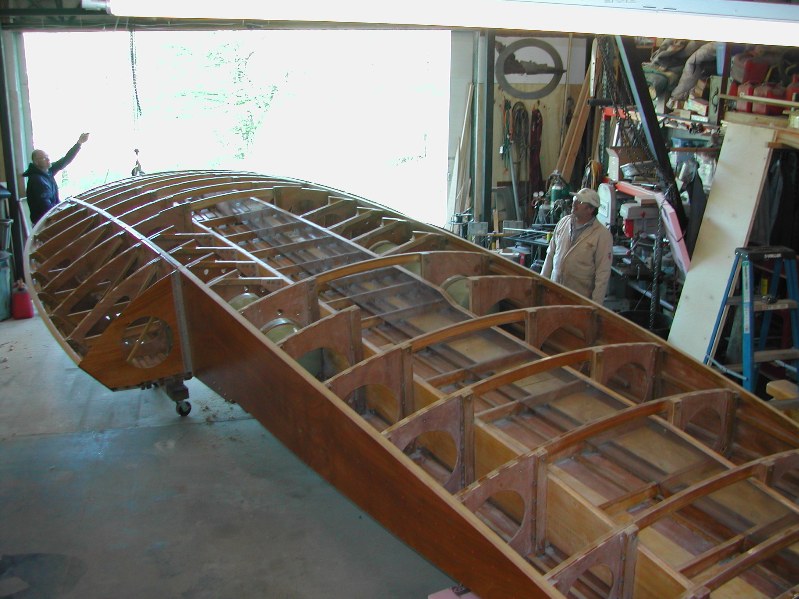

Rolling...
|
April 22
Are you SURE we want to do this?!
|
April 22
Skid fin - final check
|
April 22
Alan putting the finishing touches on the spoiler
|
April 22
Now there's a TOO familiar site
|
April 22

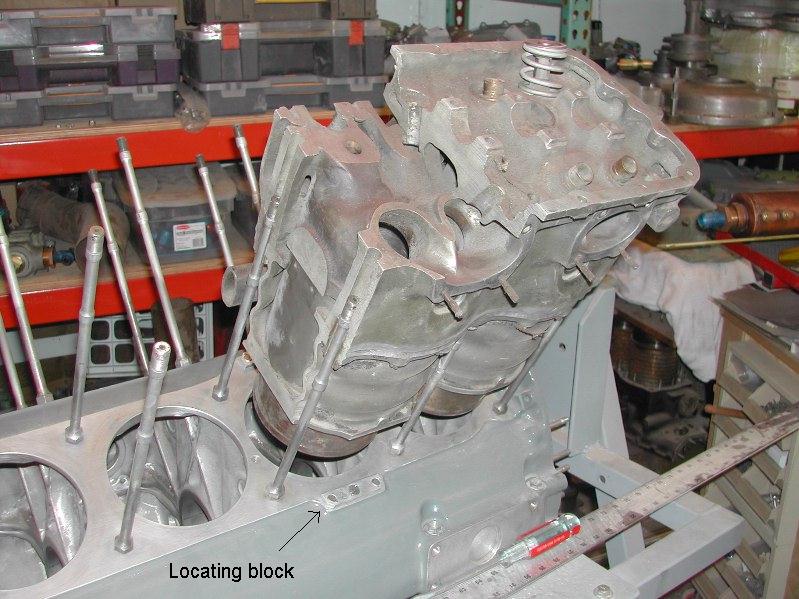

Partial bank used to test fit the locating block
|
April 29
Steve & Ron laying out the jig location
|
April 29

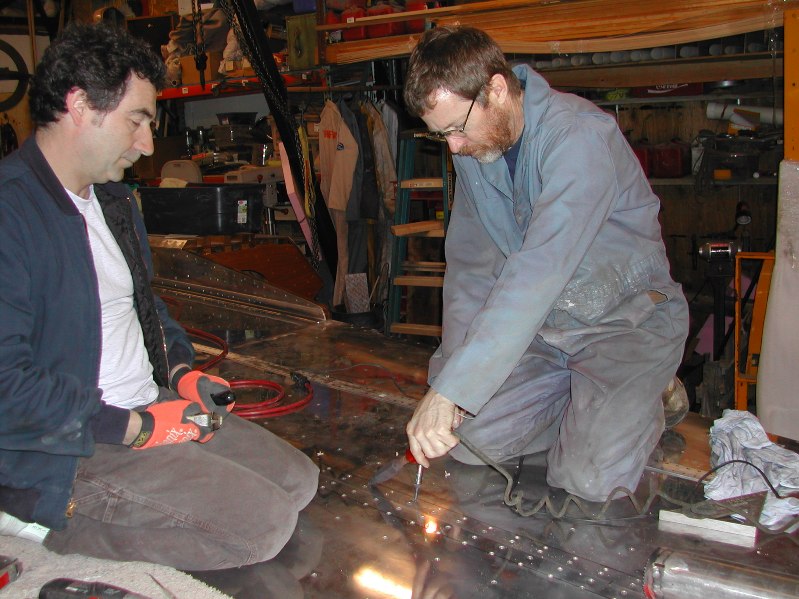

Alan & Rob removing as many screws as they can
|
April 29
This is where we WANT to go.
|
April 29
The Start
|
April 29
Through the bottom at the first frame
|
April 29

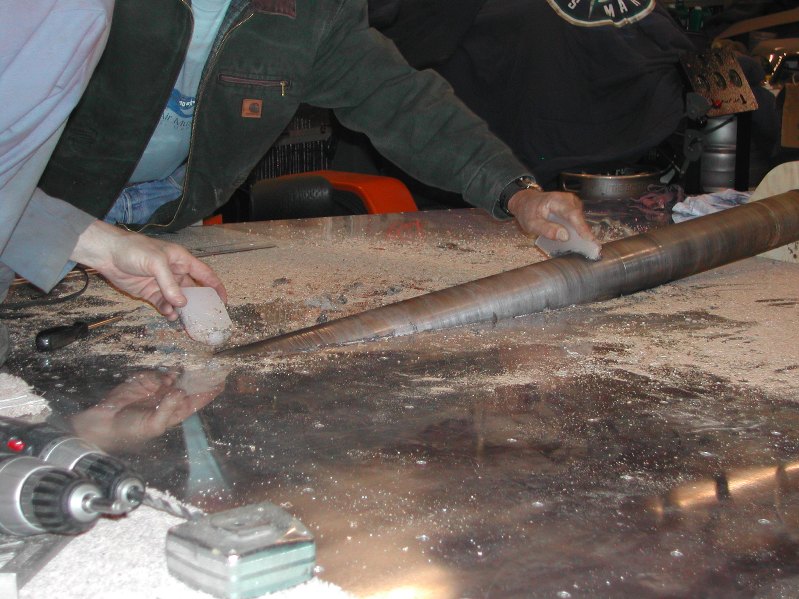

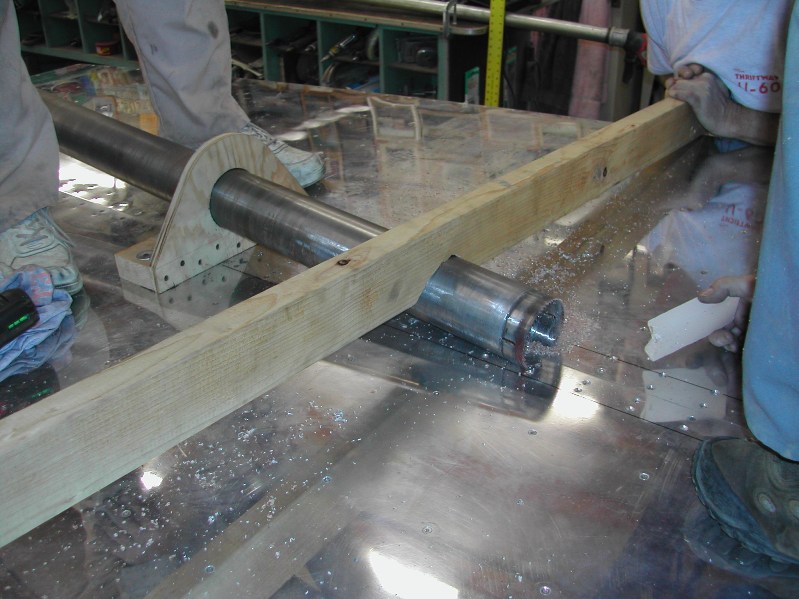

Keeping things lubed up with parafin
|
April 29

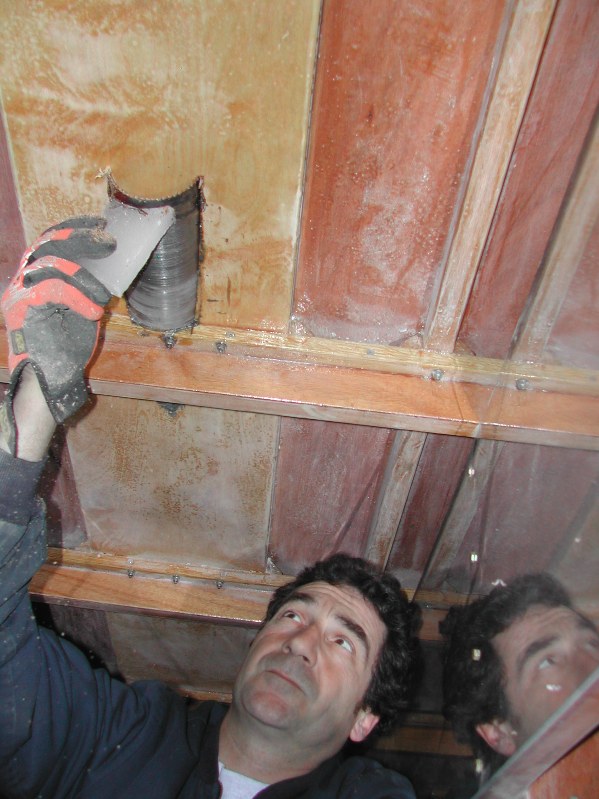

Alan doing the same from below
|
April 29
Top side crew, Lloyd on the wax, Ron and Larry on the drill, Chief on the watch
|
April 29
|
April 29

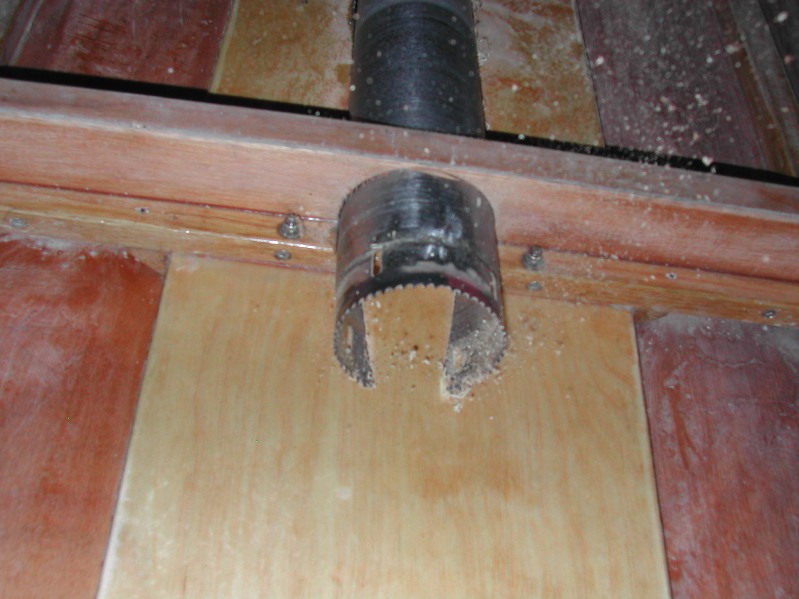

Approaching the second frame
|
April 29

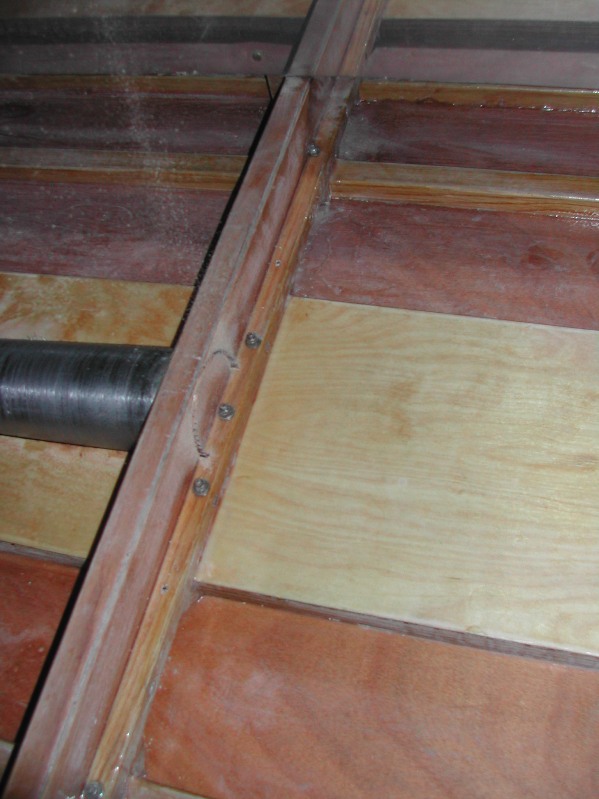

Almost through
|
April 29
Just another couple of inches!
|
April 29
Looks like where we WANTED it!
|
April 29
Polish, polish, polish, polish...
|
MAY 2006
May 6
Lary and Steve polishing, Rob welding
|
May 6
Rob TRYING to get a good shot of the transom...just too bright!
|
May 6
Exhaust stacks removed getting ready for a test start in a couple of weeks.
|
May 6
Our SDP1300 Oil screen mounted (bracket by Wheeler)
|
May 6

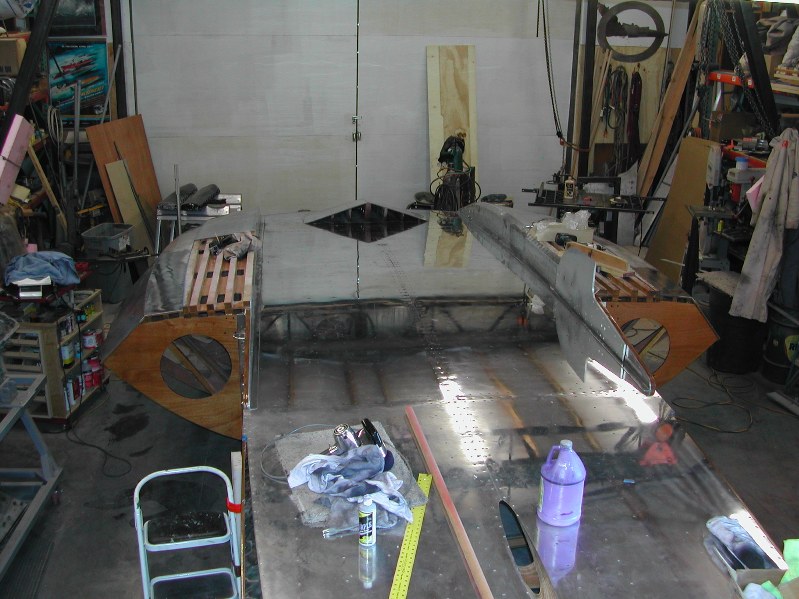

That's a lot of aluminum to polish!!!!!
|
May 13

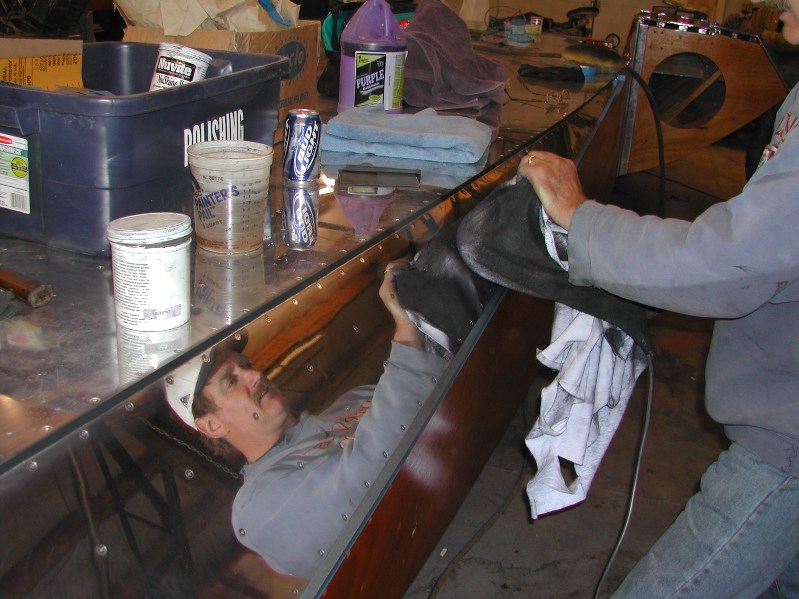

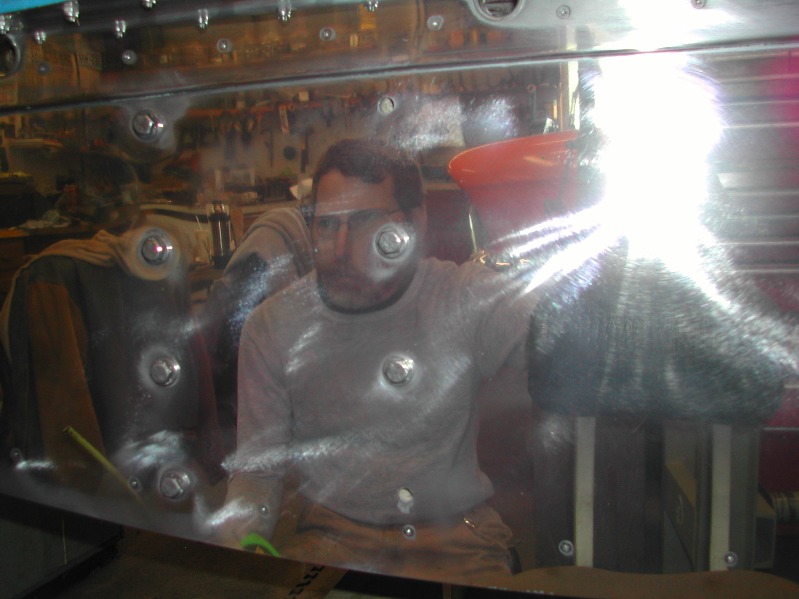

Stuarts reflection in the non-trip.
|
May 20
MORE Polish, polish, polish
Lloyd, Chief, Alan and Stuart
|
May 20

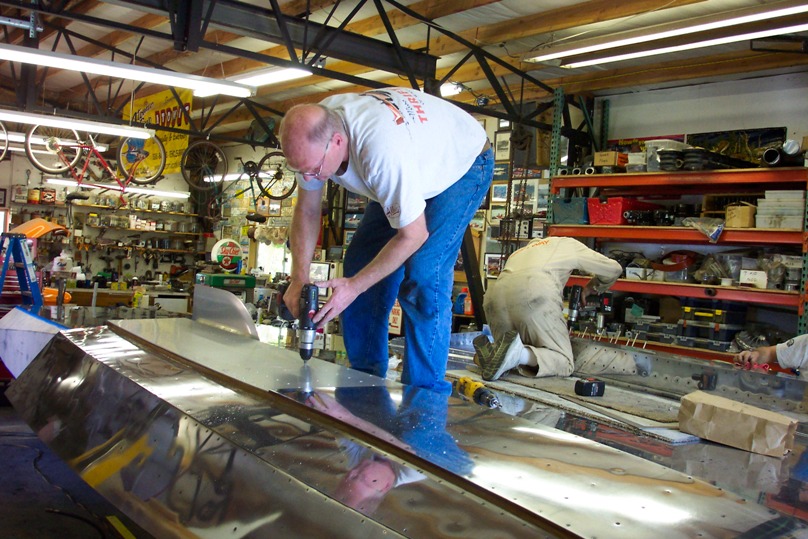

Dueling Drills
|
May 20
Steve cleaning the Hysol out of the pilot holes
|
May 20
Chief and Alan installing the Right Primary
|
May 20

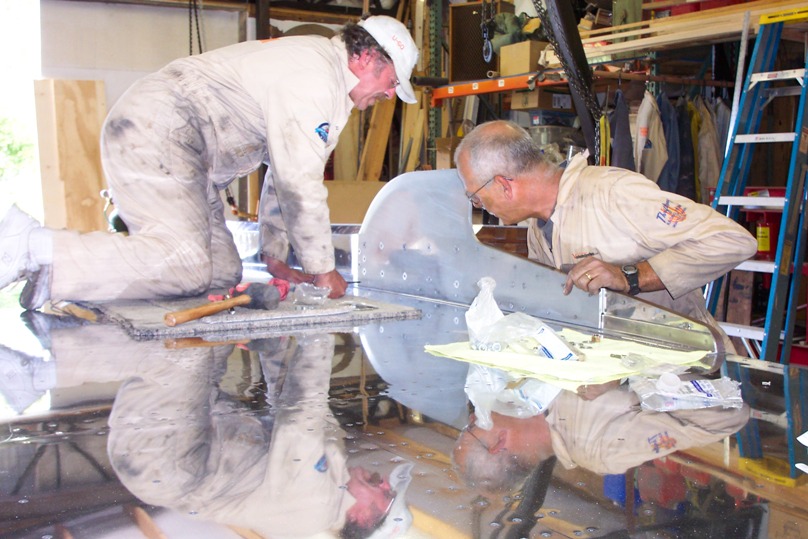

Chief and Larry installing the Skid Fin
|
May 20

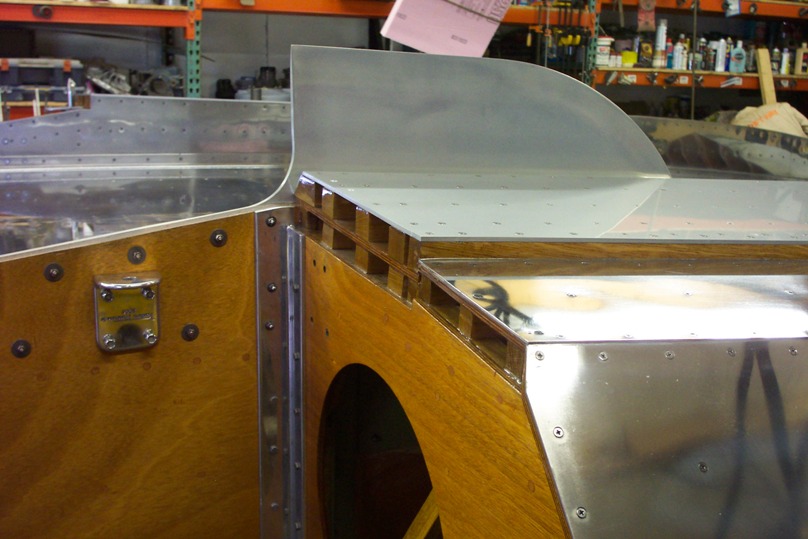

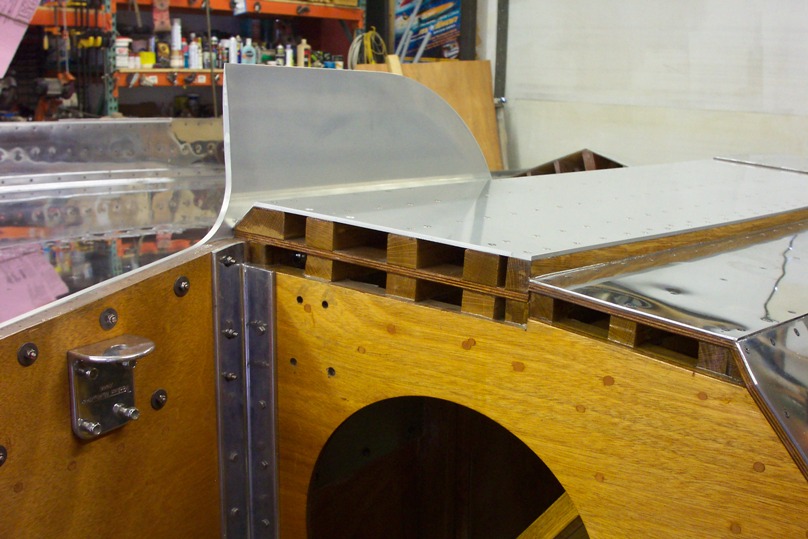

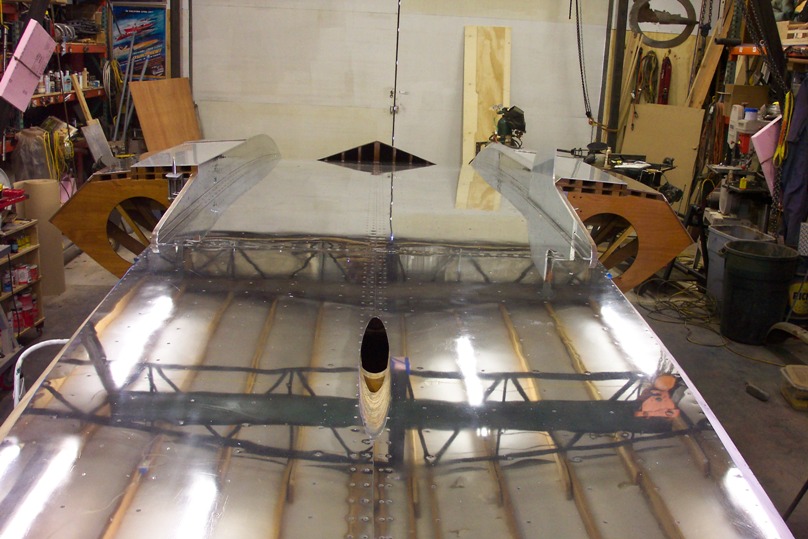

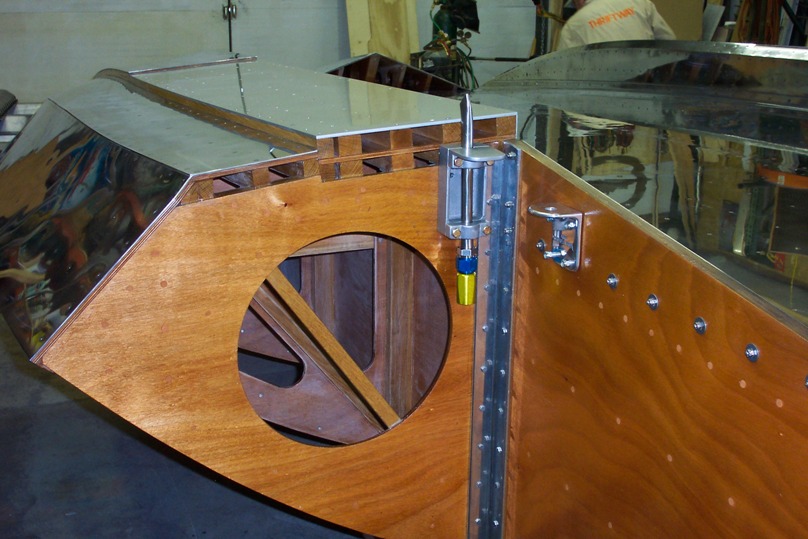

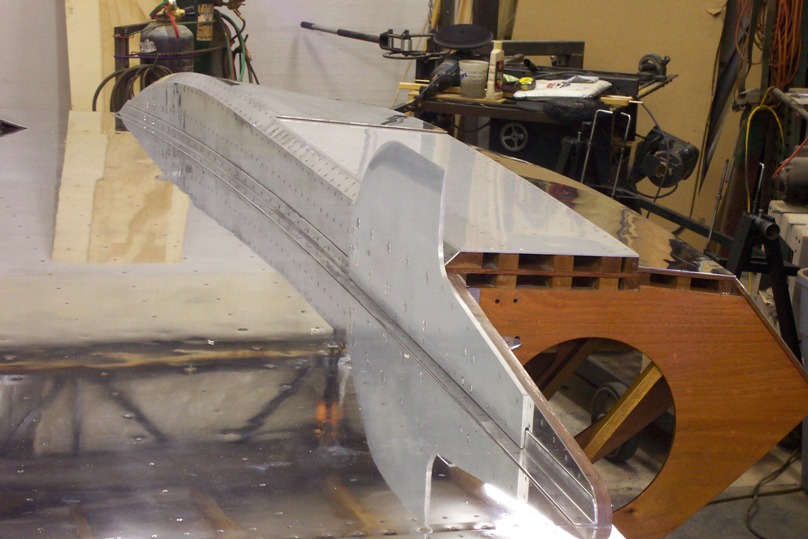

Right Sponson with all hardware in place
|
May 20
Left Sponson
|
May 20
Left Sponson
|
May 20
Left Sponson
|
May 20
Shiney and DONE!
|
May 27

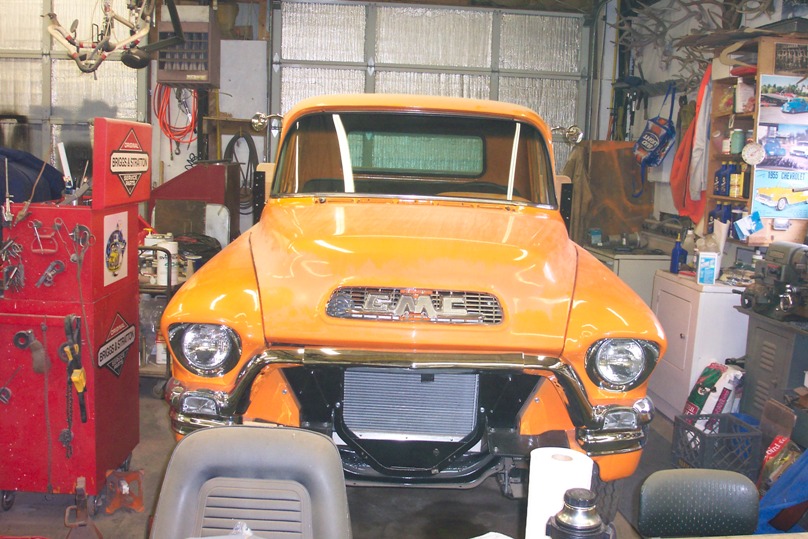

Larry's 1955 GMC
WITH new windshield
|
May 27
Shop Oil tank
|
May 27

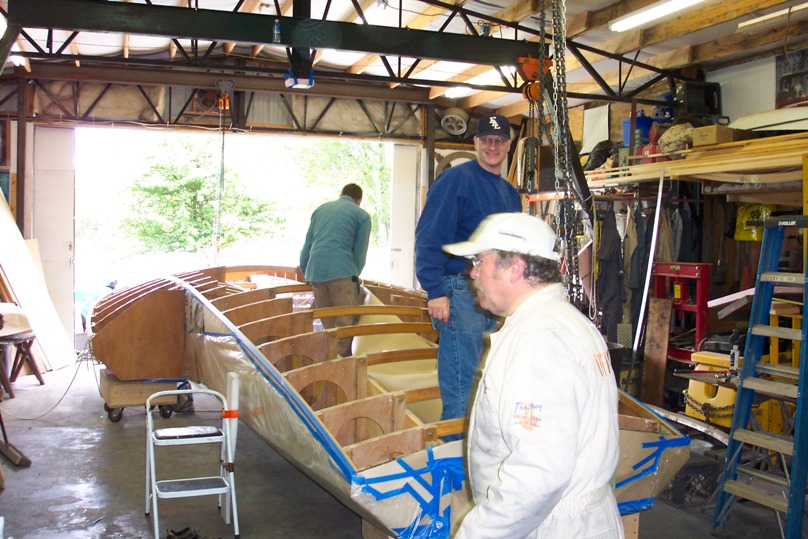

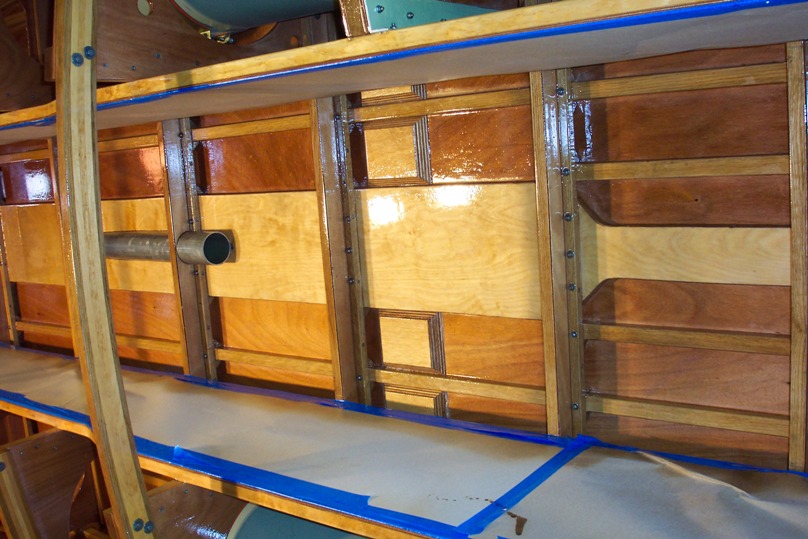

Masking, masking, masking...
|
May 27
MORE masking
|
May 27

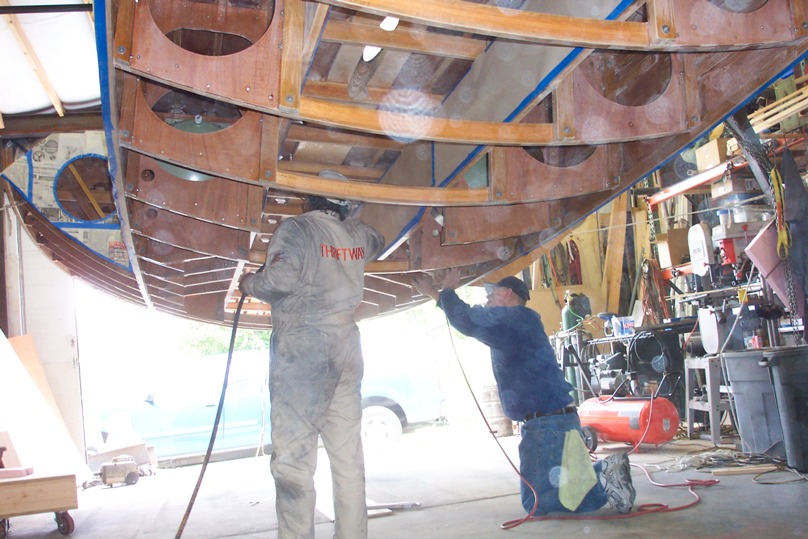

Chief and Steve blowing off the dust
|
May 27

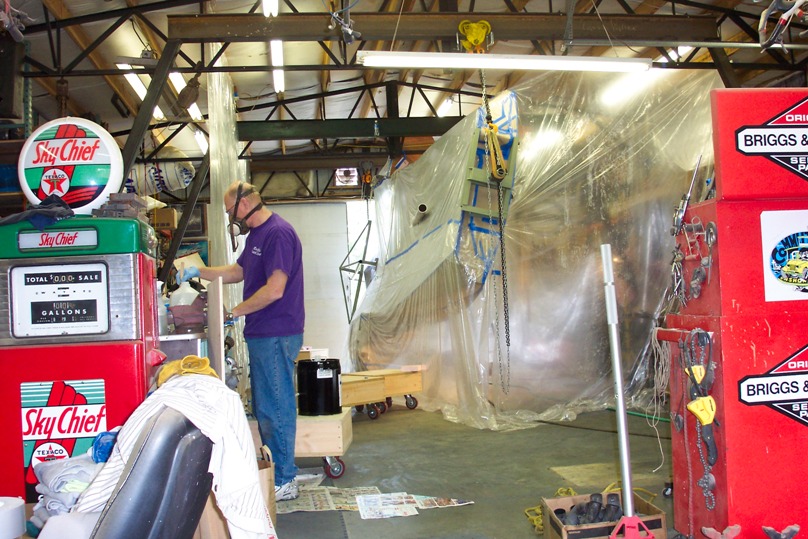

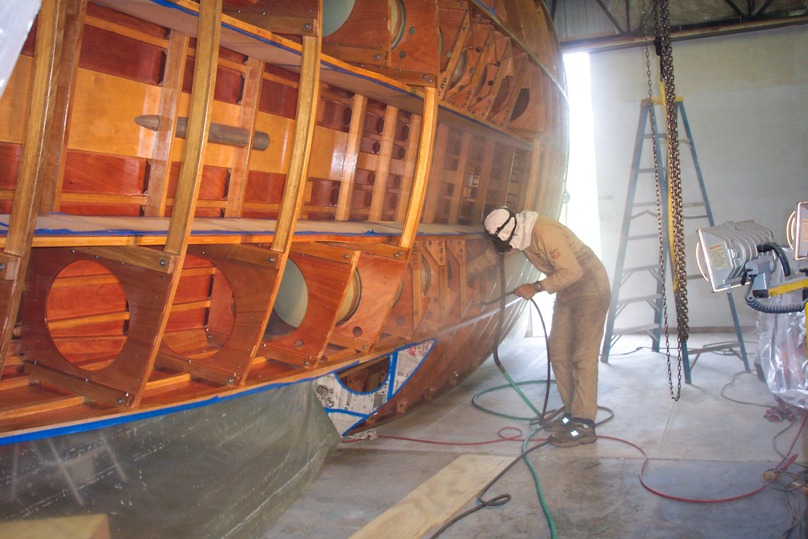

Rob put on the first two coats
|
May 27
Larry's turn!
|
May 27
Steve was the Mix Master
|
May 27
Shiney...
|
May 27
Steve checking to see if it's dry to the touch
It WAS!
|
JUNE 2006
June 3

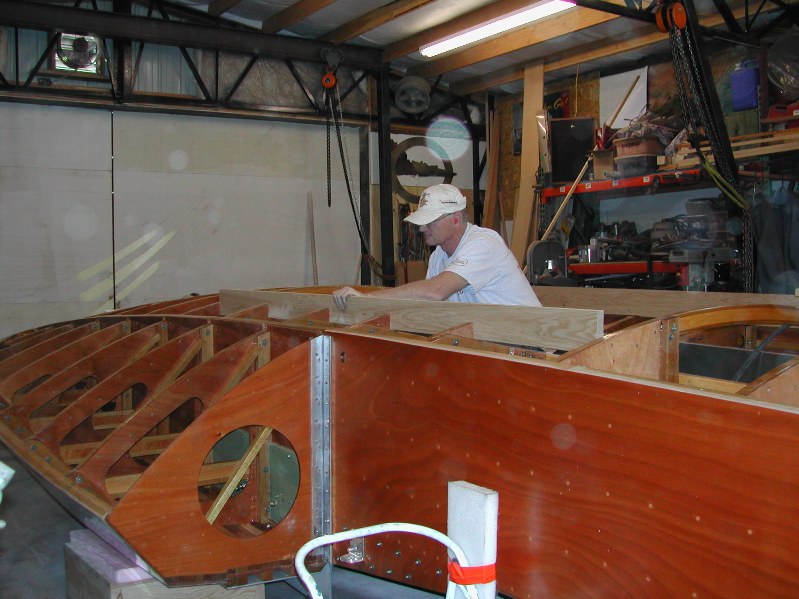

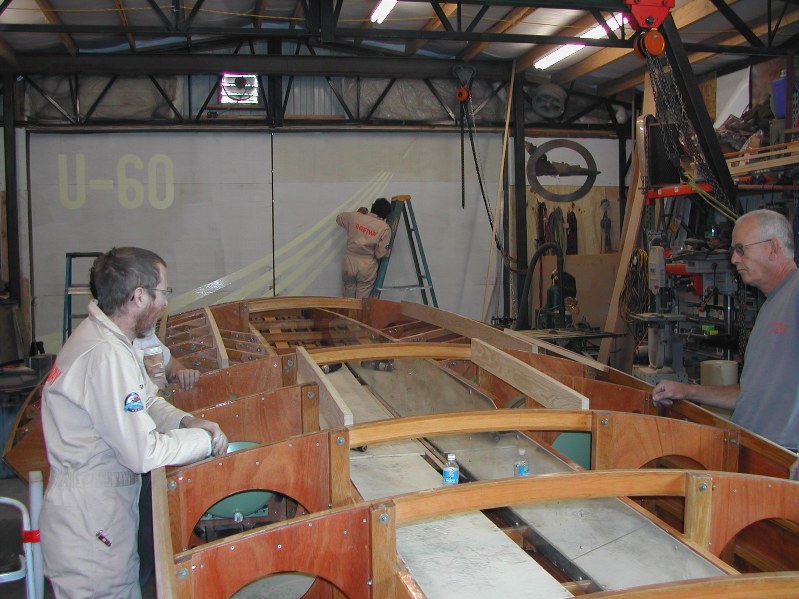

Steve working on the combings
|
June 3

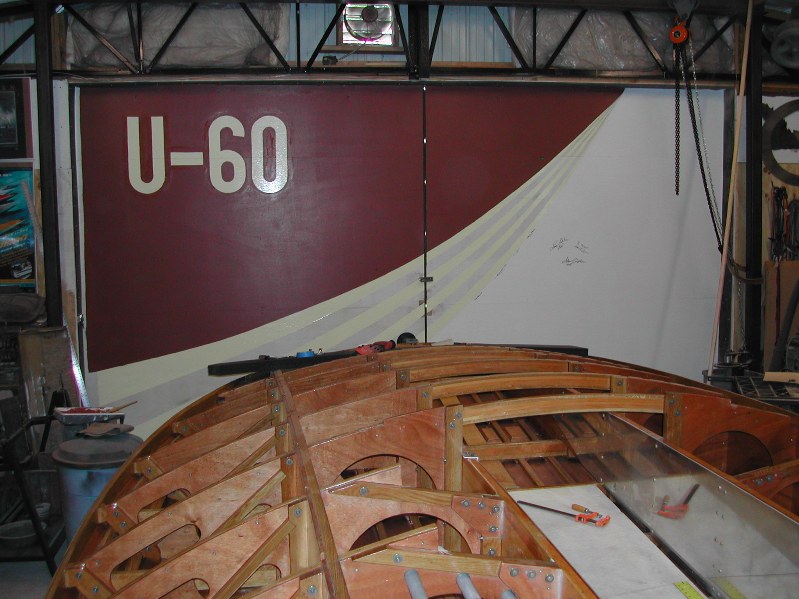

New combing pieces in place.
|
June 3

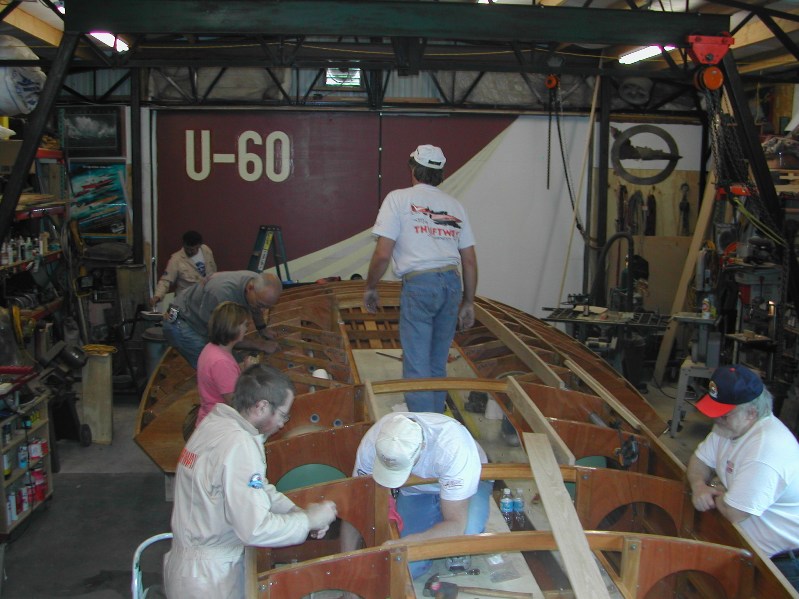

The crew working on the combings
|
June 3
The new signature board
|
June 17

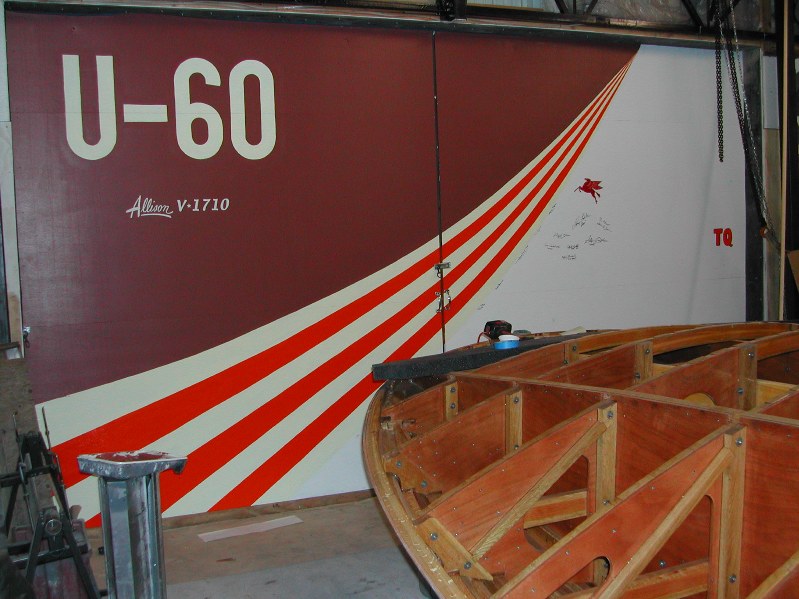

The signature wall...finished!
|
June 17

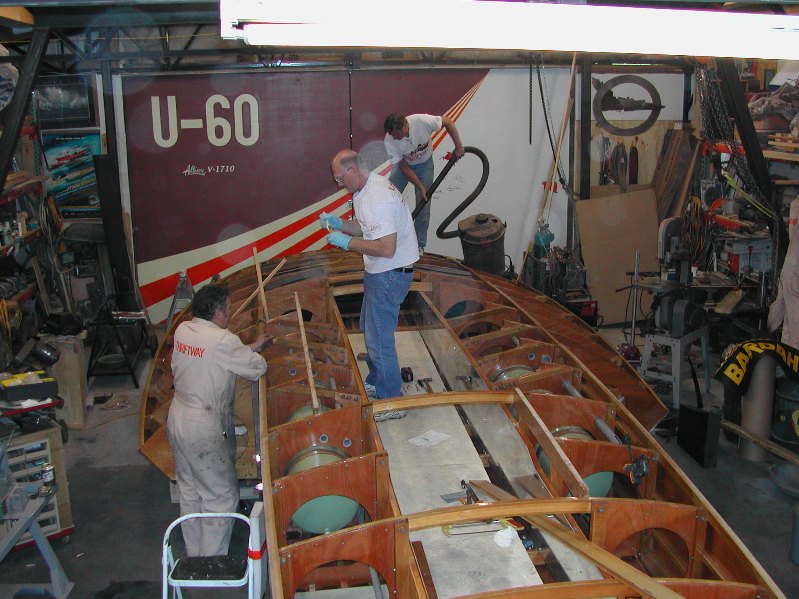

Steve & Chief installing the combing - Stu on vacuum detail
|
June 17
Flotation installed
|
June 17

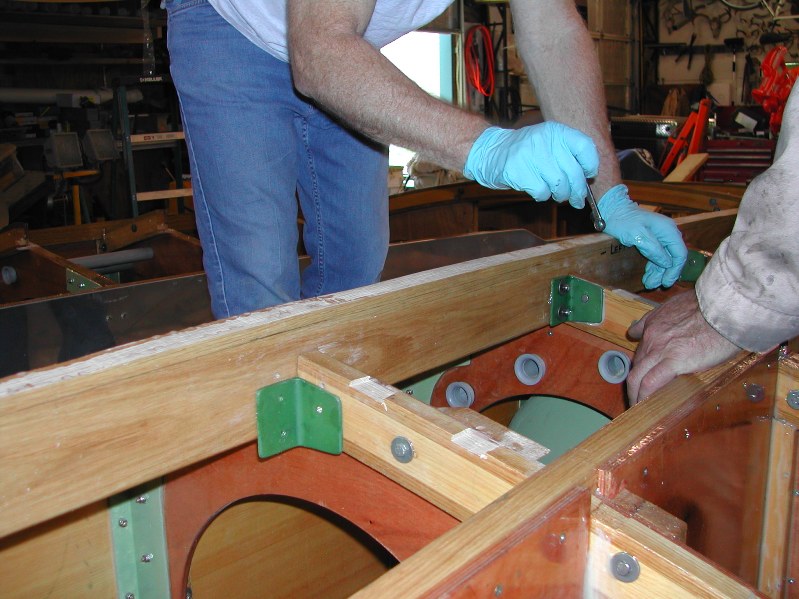

Aluminum clips bolted & hysoled in place to hold combings
|
June 17
Custom tube clamps by Wheeler
|
June 24

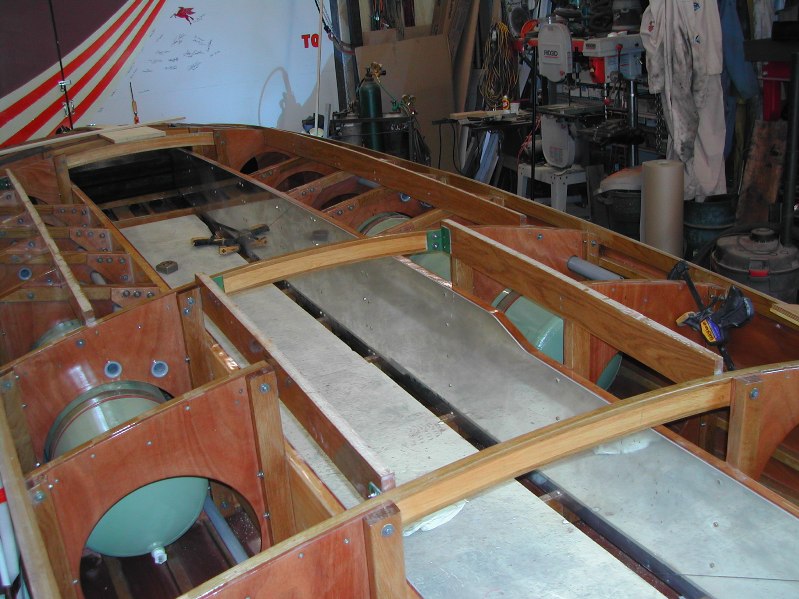

Engine and cockpit combings coated and faired.
|
June 24

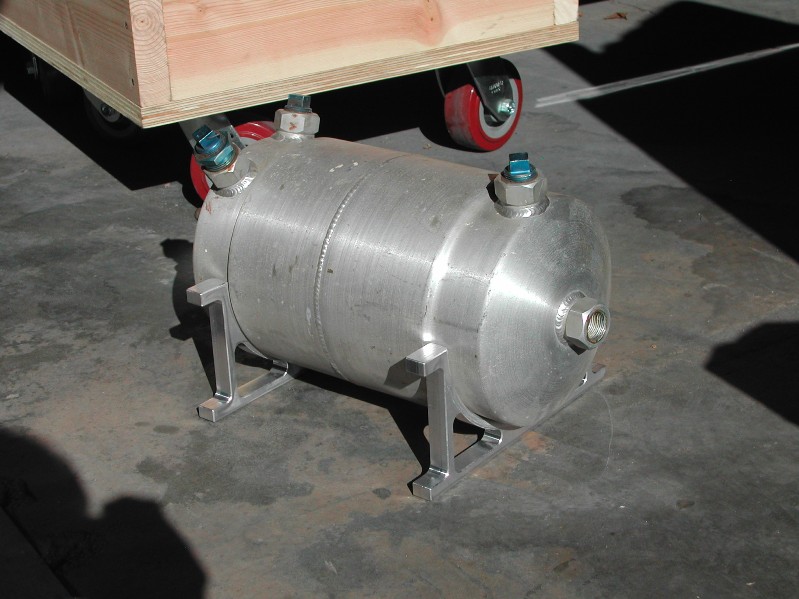

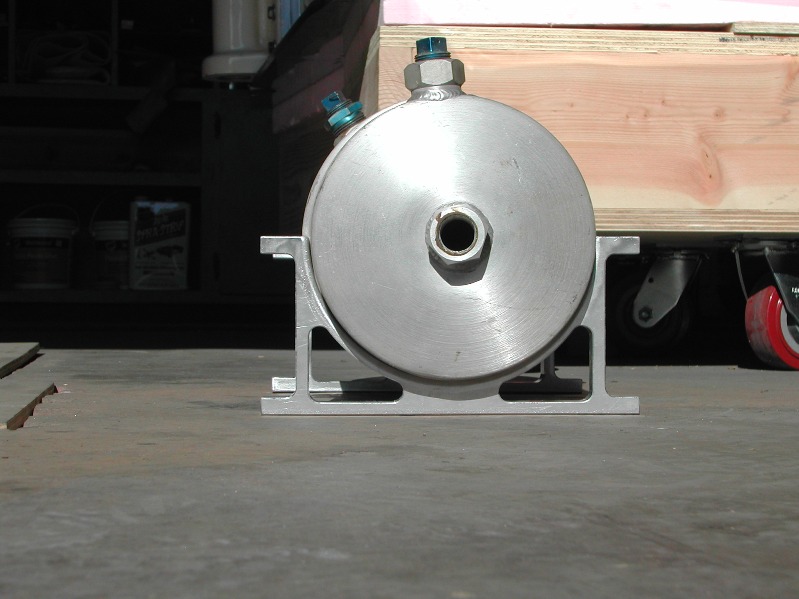

Oil overflow tank brackets by Wheeler (1)
|
June 24
Oil overflow tank brackets by Wheeler (2)
|
June 24

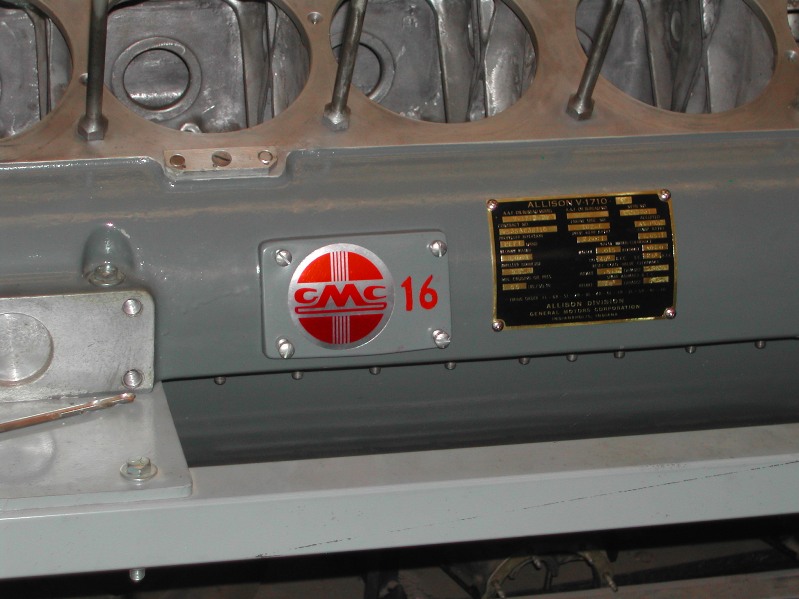

Engine ID
|
June 24

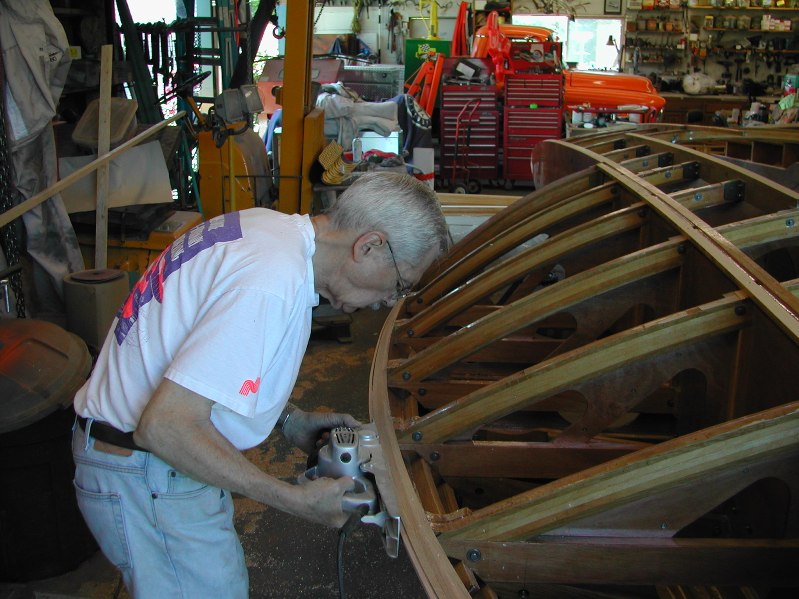

Ron putting the "touch" on the chine
|
June 24

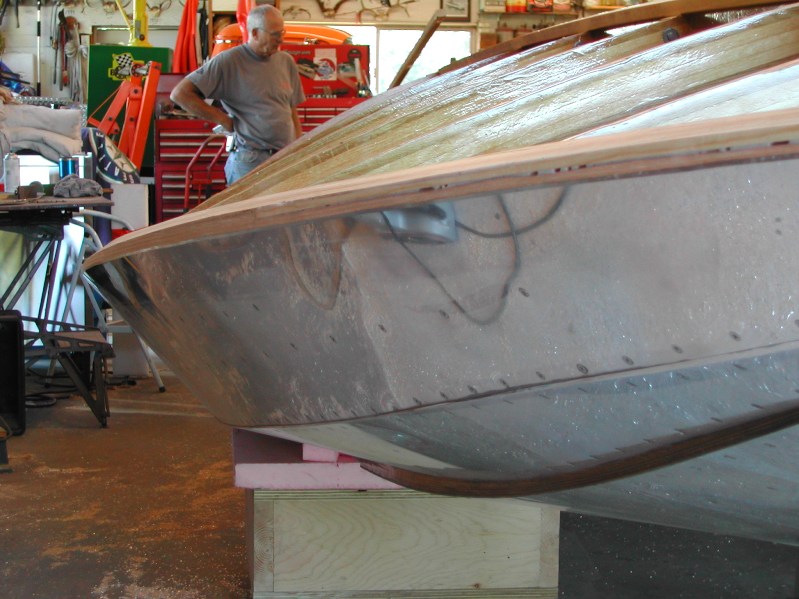

Ron establishing the shear line
|
June 24
Right sponson shear line
|
AUGUST 2006
August 13
Summer Party at the Fullers
|
August 13
|
August 13
|
August 13
Old Cars
|
August 13
More Old cars
|
August 13
The Fuller Race Course
|
August 13
The "Pits"
|
August 13
Heat 1B(eer)
|
August 13
The Start!
|
August 13
Winner Jere Heiser with Runner-up Don Mock
|
August 19
Rob and Larry working on the lifting rings
|
August 19

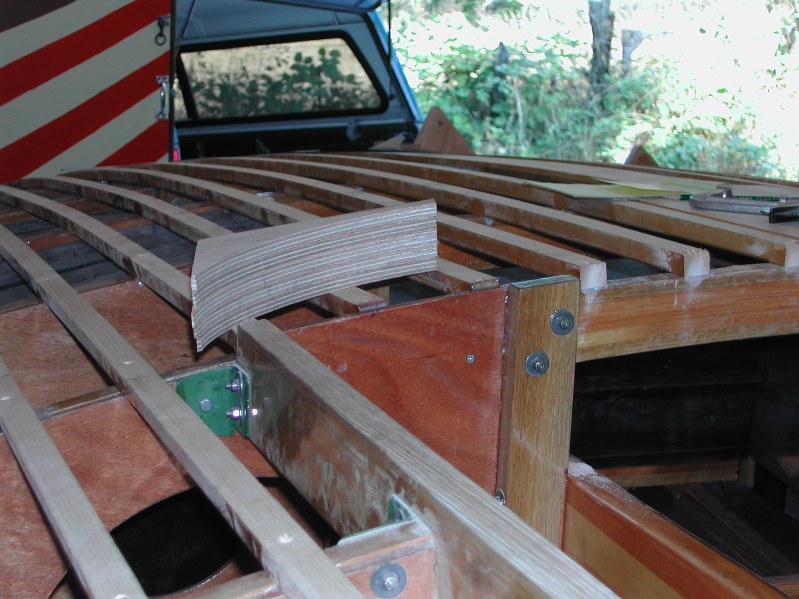

Engine compartment deck corner pieces will be laminated Mahogany plywood
|
August 26
Larry putting the final planing on the engine compartment combings
|
August 26
Robs 1961 Dodge Army truck
|
August 26
U-60 engine rail material
|
August 26
The engine rails of the U-3
|
August 26

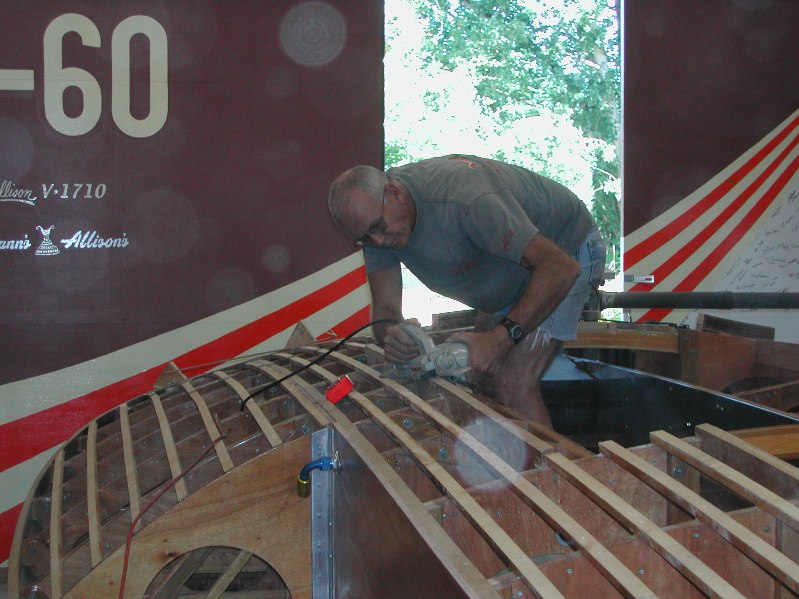

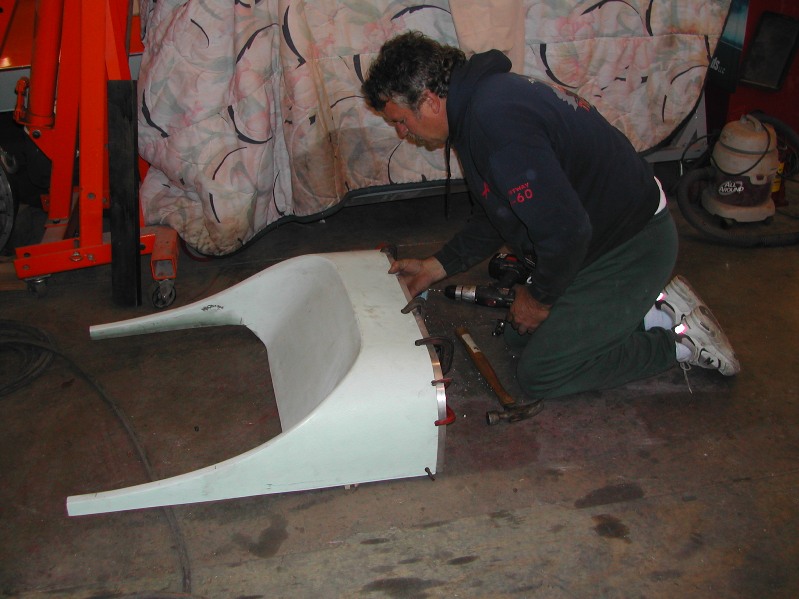

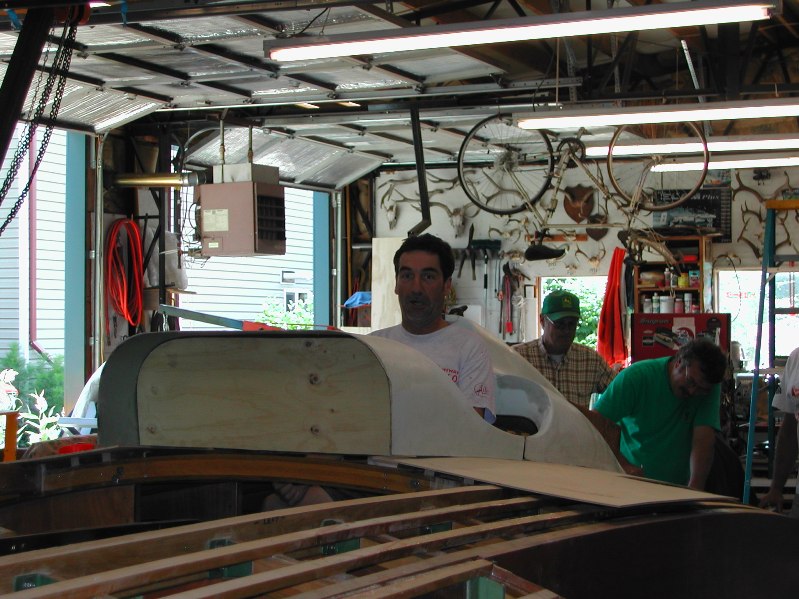

Rob scribing the tail cowlings
|
August 26
Getting closer
|
August 26
Alan needed to see how everything fits
|
NOVEMBER 2006
November 4
Larry trying to take Chiefs "Sparky" nickname away
|
November 4

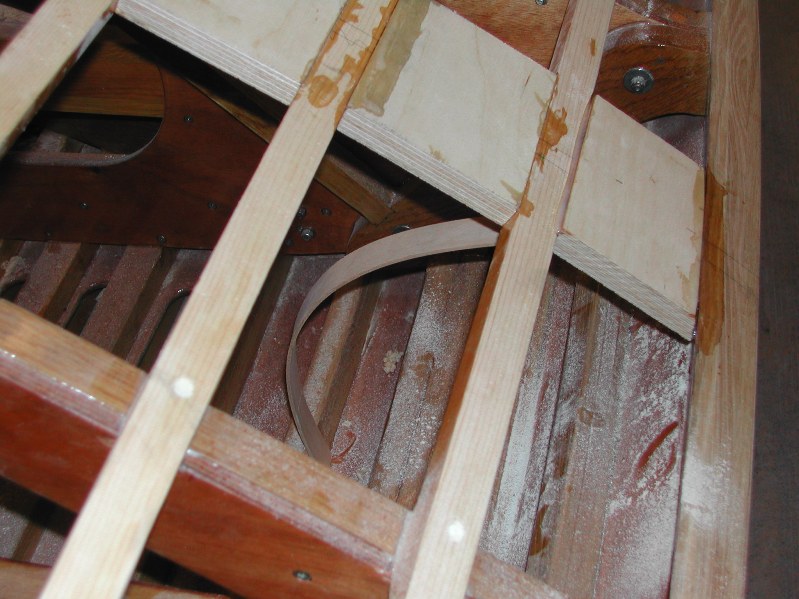

The "Wheeler Spring" method of holding the butt block
|
November 4
Battery tray
|
November 4

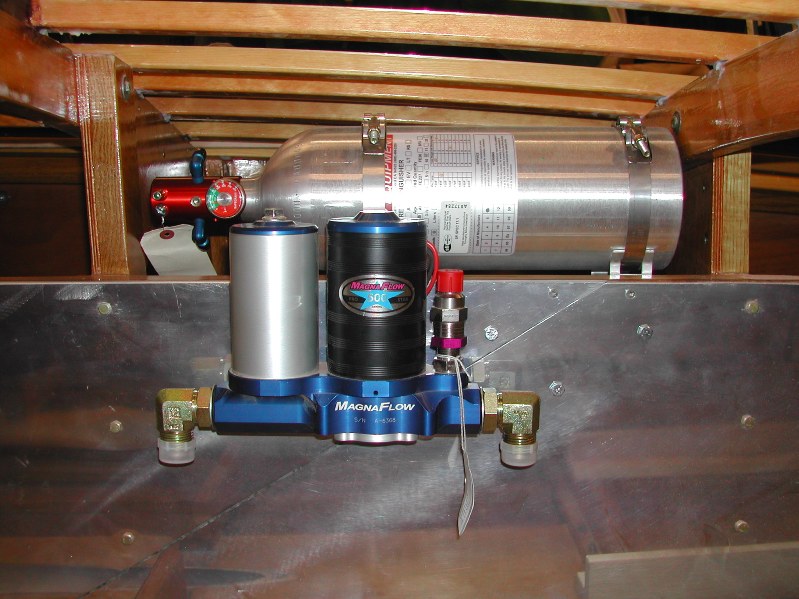

Fuel pump and Fire bottle
|
November 4
Another angle to show actual location
|
November 4
Chief modifying the fire wall
|
November 4

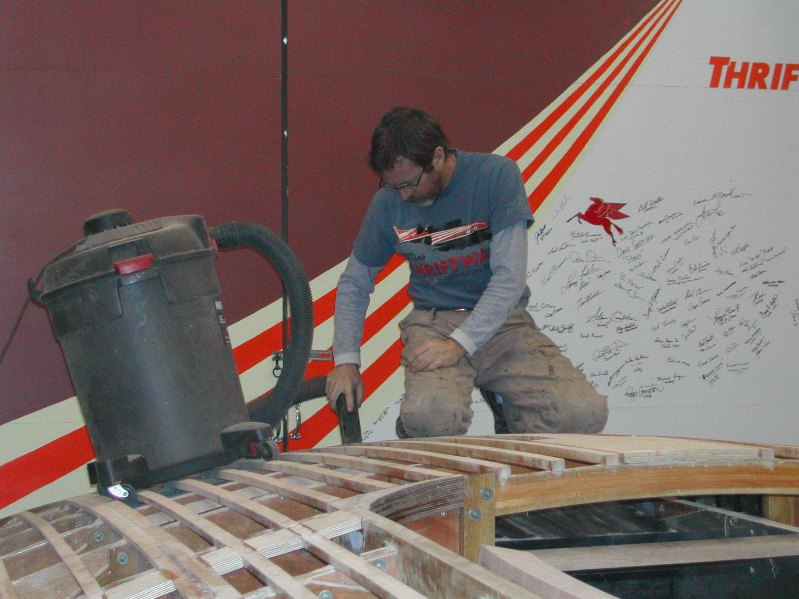

Rob getting the bow ready for deck
|
November 4
Alan sanding on one of the lifing eyes
|
November 4
Sponson butt blocks
|
November 4
Just needs fairing then DECK!
|
November 5
Alan working on installing the lifting eyes
|
November 5

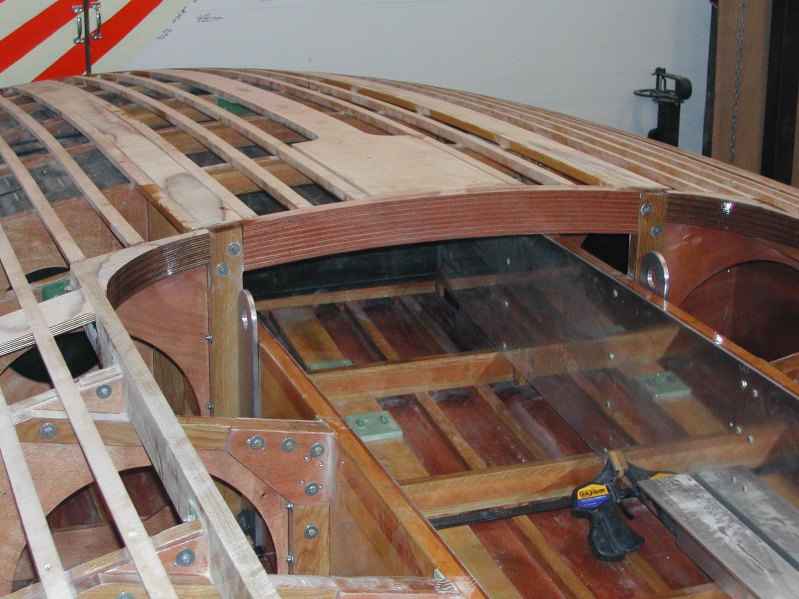

Front of engine compartment filler pieces
|
November 6

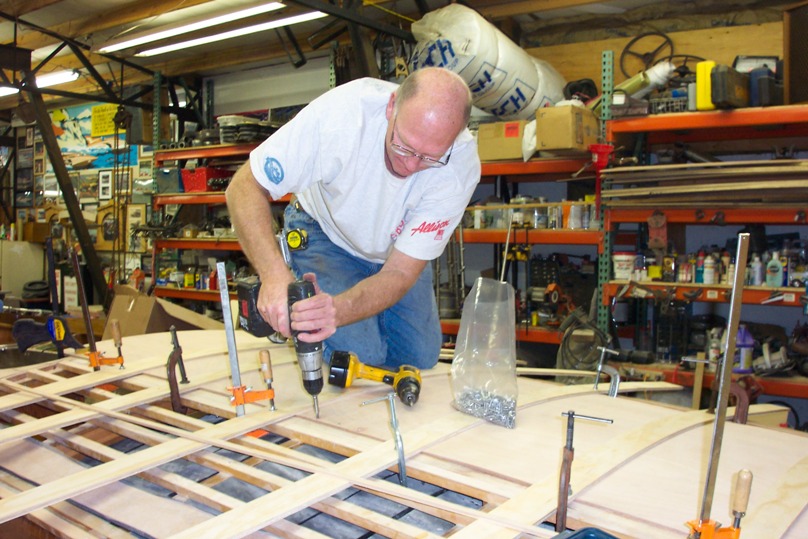

First piece clamped and getting pilot drilled
|
November 6
Glue's spread so now it's getting attached for real
|
November 6
Larry installed the lifting eyes and Chief's designing the fuel block
|
November 6

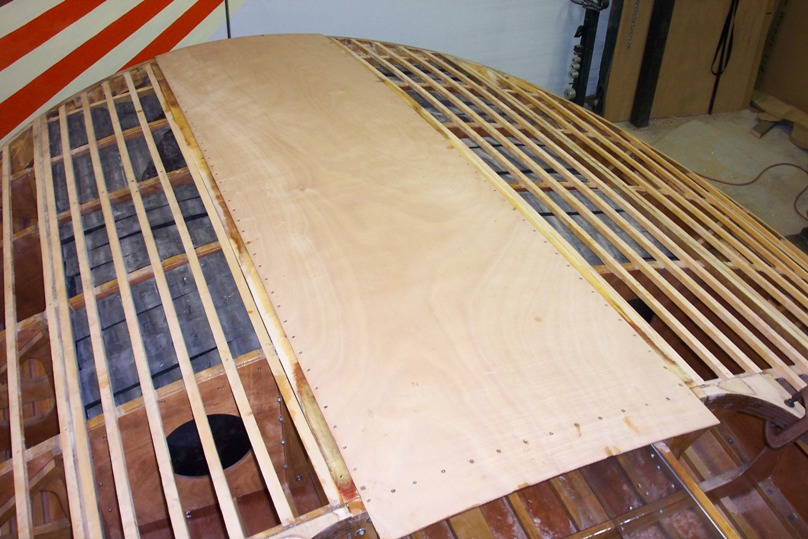

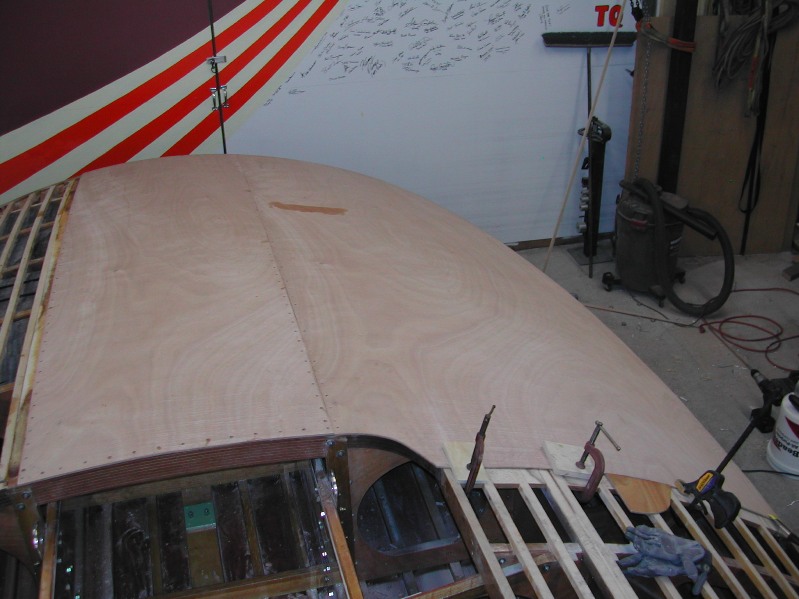

The first deck piece is installed!
|
November 6
Bow cleat fits!
|
November 7

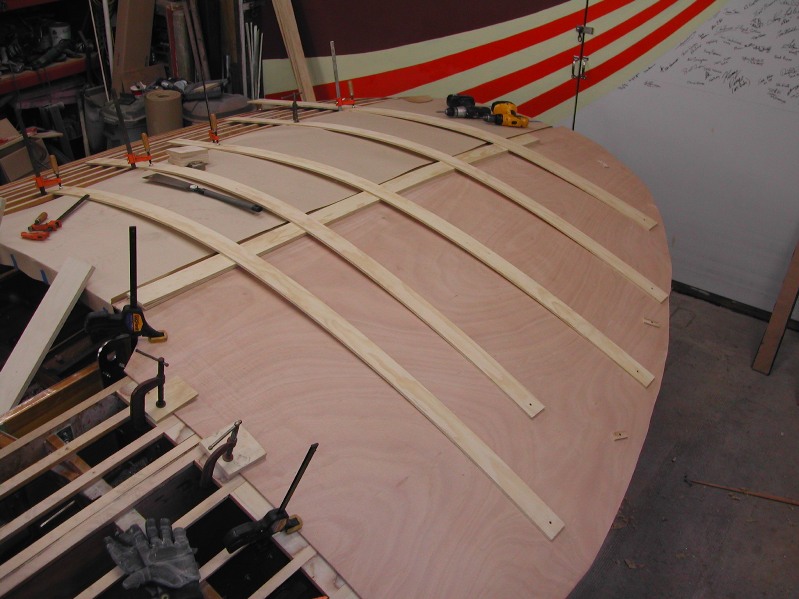

This is how we hold the compound curve in place while we fit the joint
|
November 7
Right bow deck
|
November 8
The bow pieces in place
|
November 8
The decking team!
|
November 9

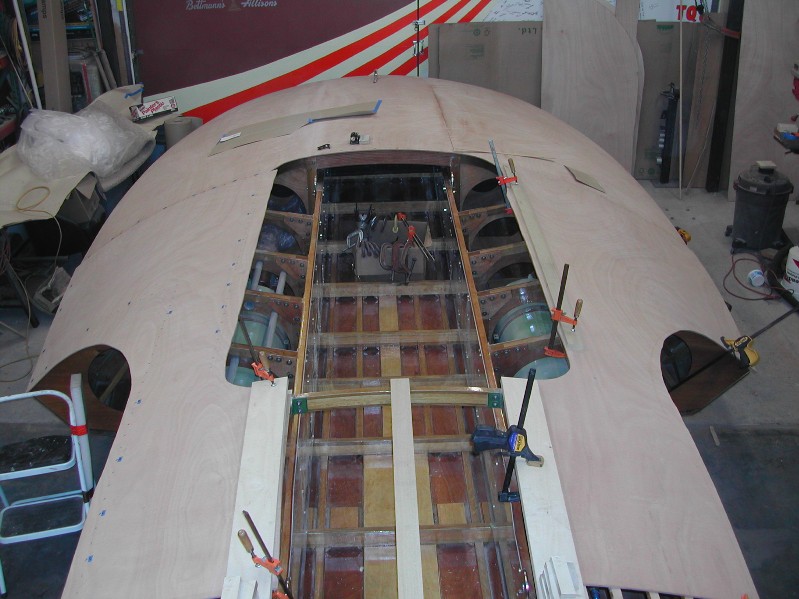

More Deck pieces are being formed
|
November 9

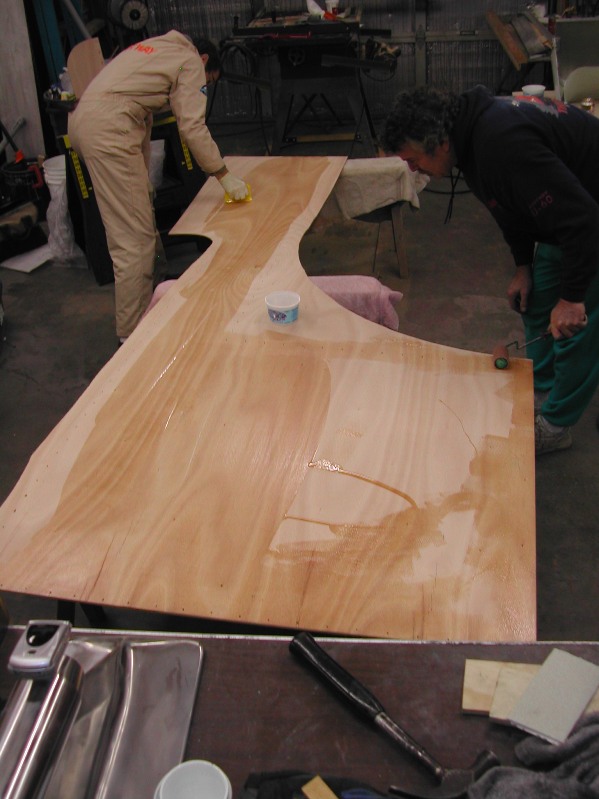

Chief and Scooter putting the seal coat on the back of the next pieces to be attached
|
November 10

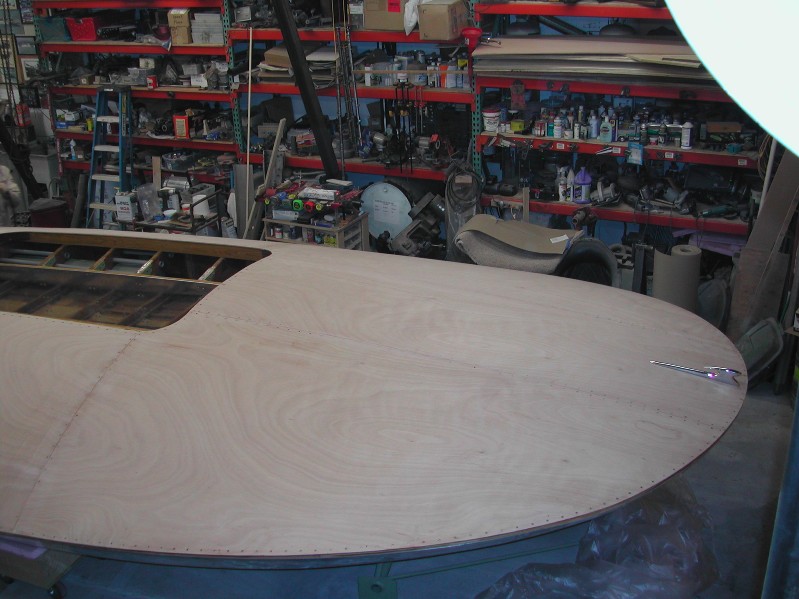

Completed bow with cleat
|
November 10
|
November 18

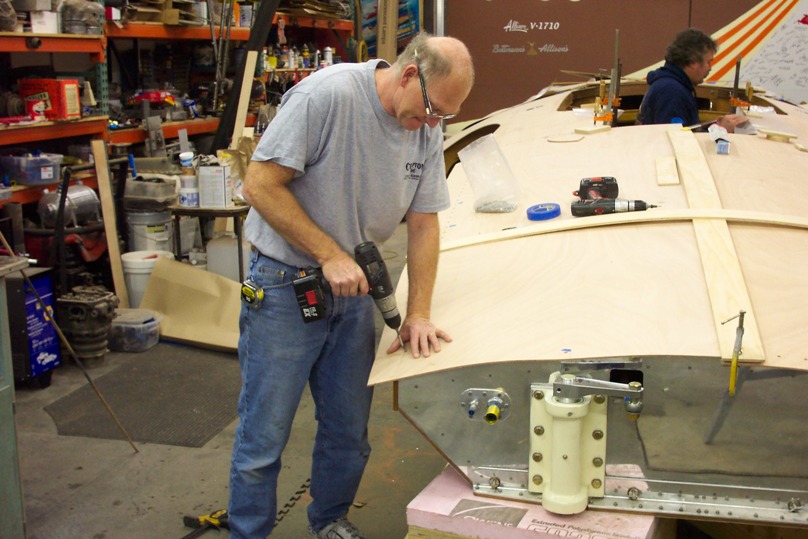

Steve fitting the last deck piece
|
November 18

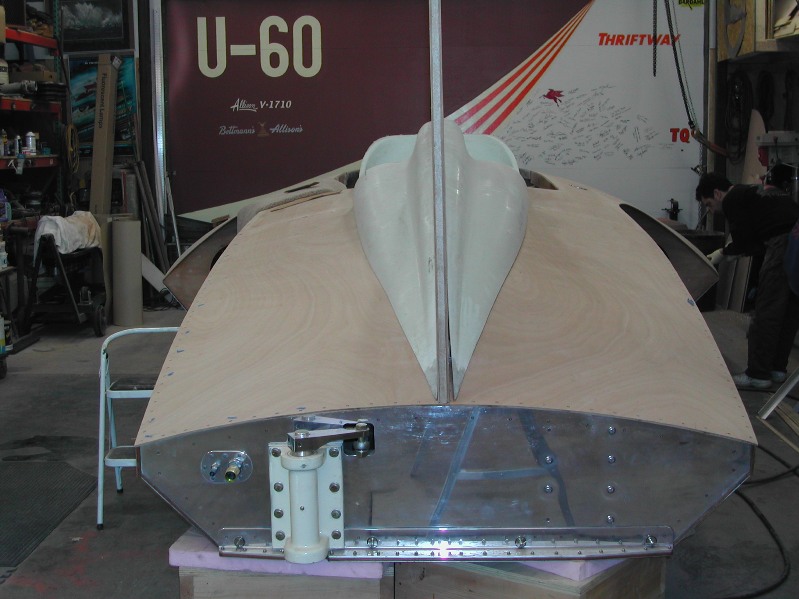

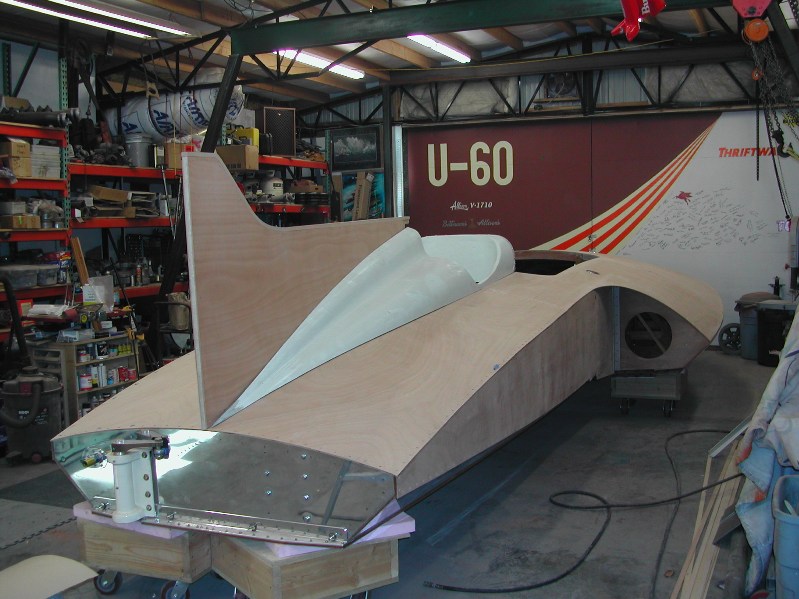

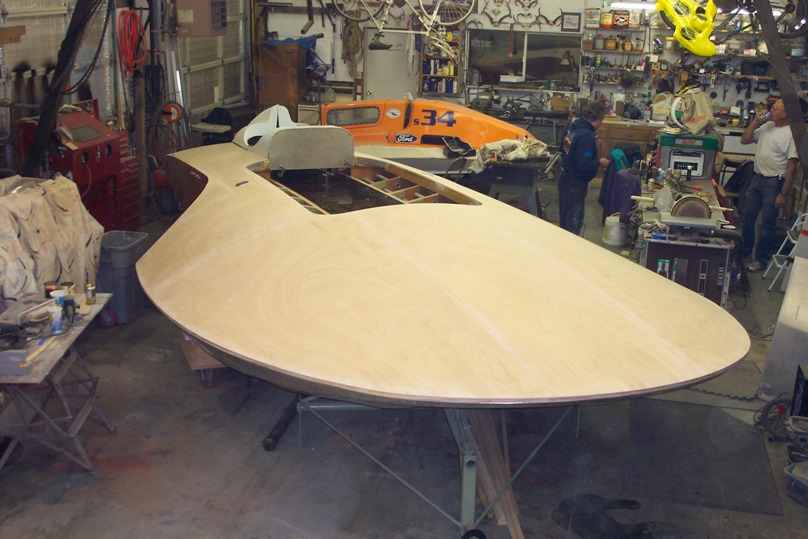

The hull ALMOST complete
|
November 25
|
November 25
|
November 25
|
November 25

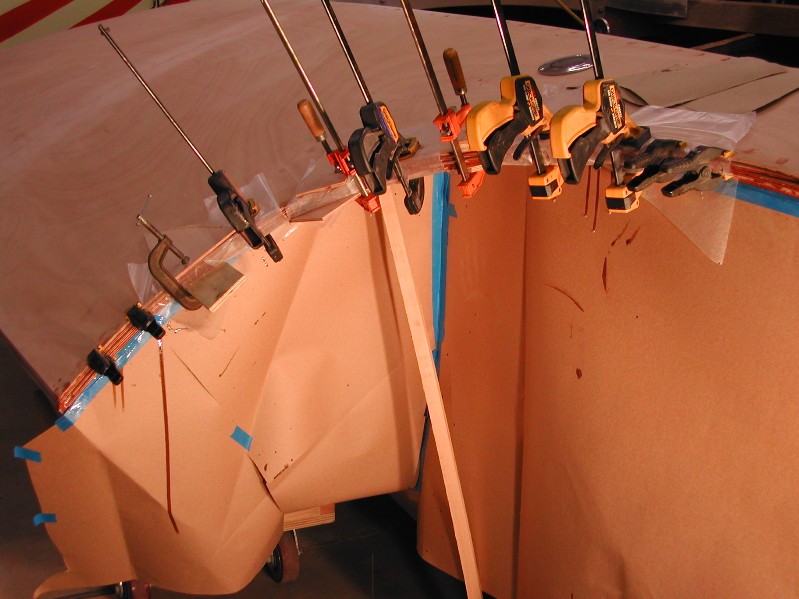

Left side deck curve doublers being glued
|
DECEMBER 2006
December 9

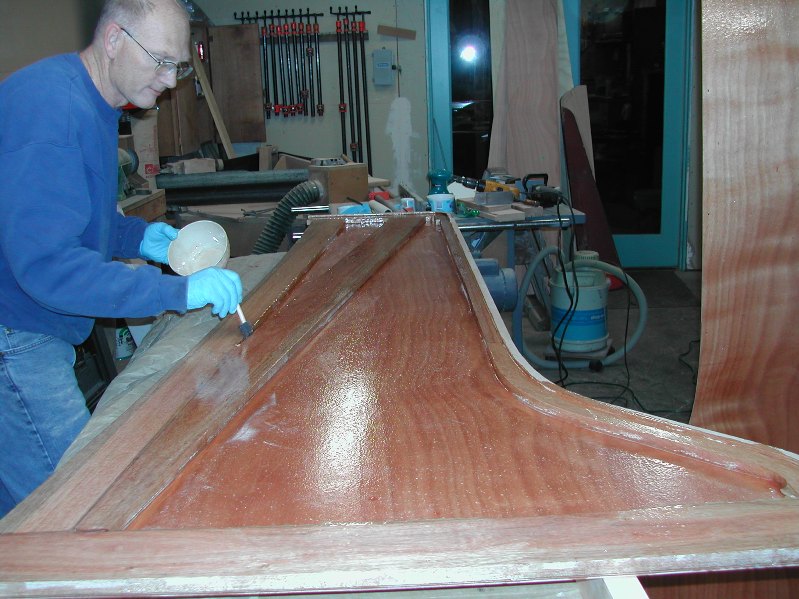

Steve getting ready to install the second sheet on the tail
|
December 9
Larry is sanding on the Left side deck curve, Alan is cleaning up glue drips and Stuart is detailing the engine bay.
|
December 9

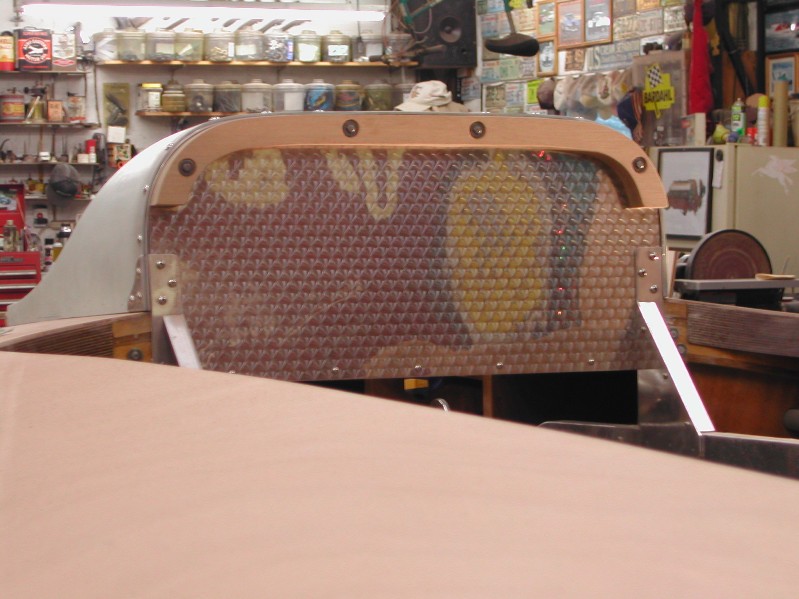

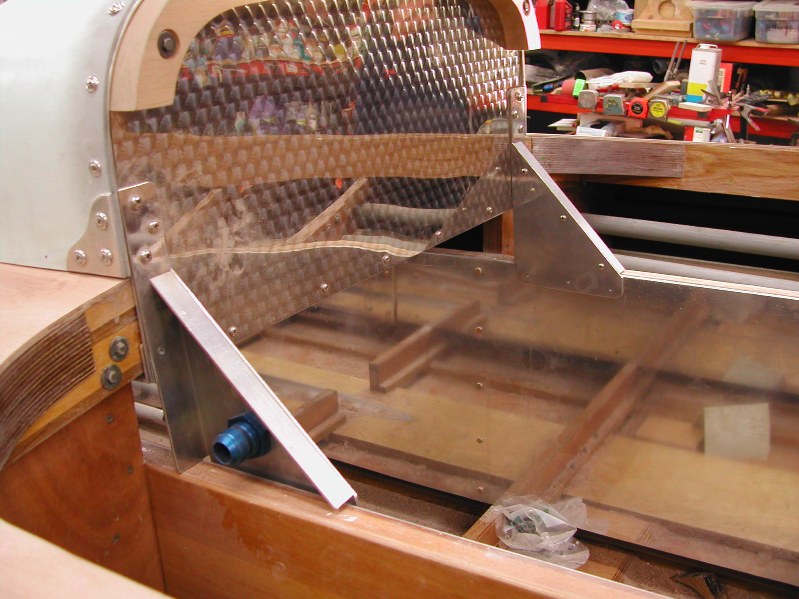

Dash cowl with stainless engine turn and cowling support pieces attached
|
December 9
On the boat!
|
December 9
Our collection of gauges for the dash
|
December 9
Flash pan corner supports
|
December 9

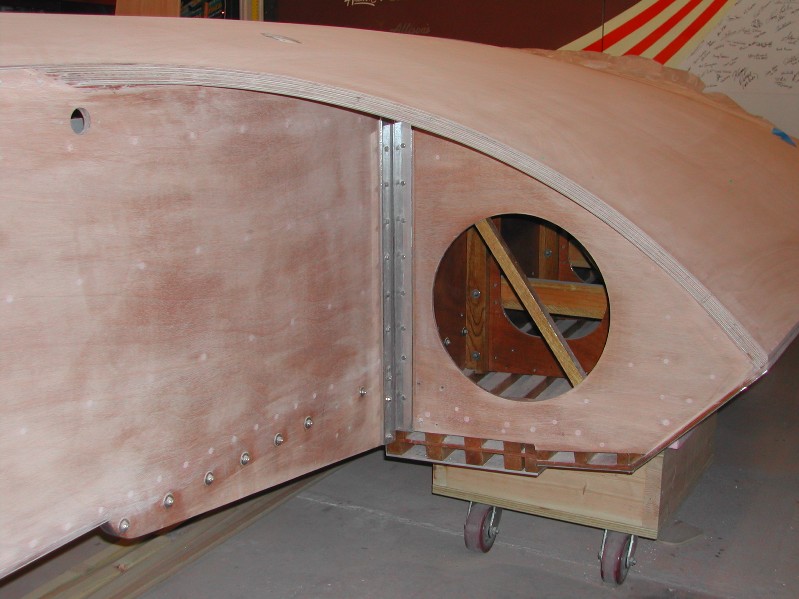

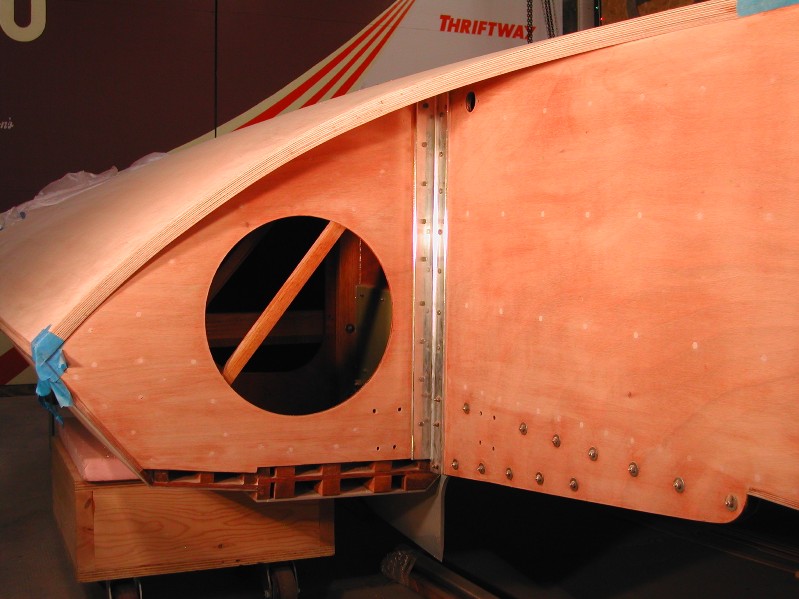

Right side deck curve doublers Done!!!!
|
December 9
Left side deck curve doublers Done!!!!
|
December 30

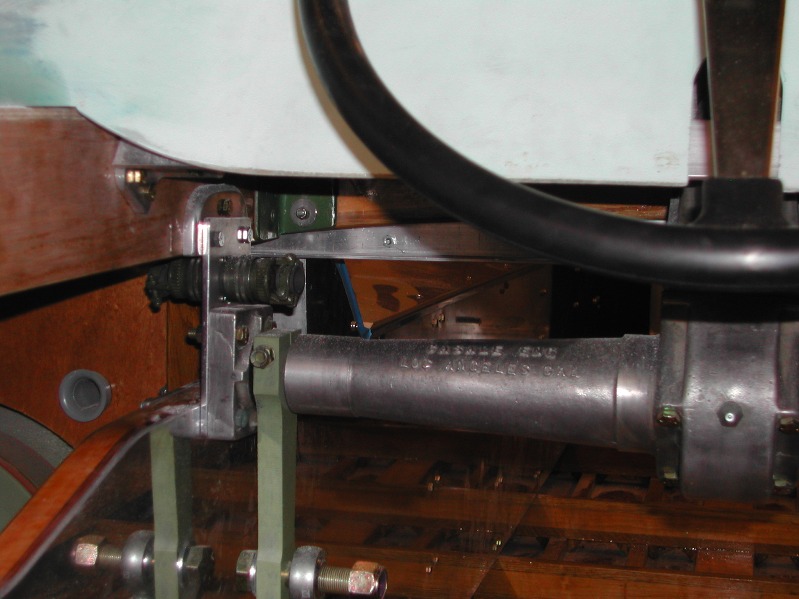

Steering box & dash cowl attached
|
December 30
Electrical harness connection
|
December 30
Oil tank and Flash pans in place
|
December 30

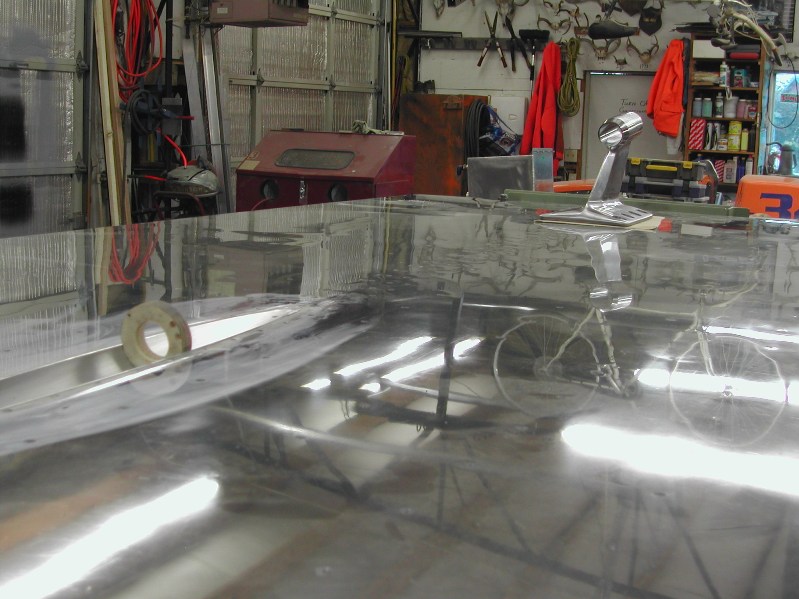

Screw line attaching the deck to the airtrap
|
December 30

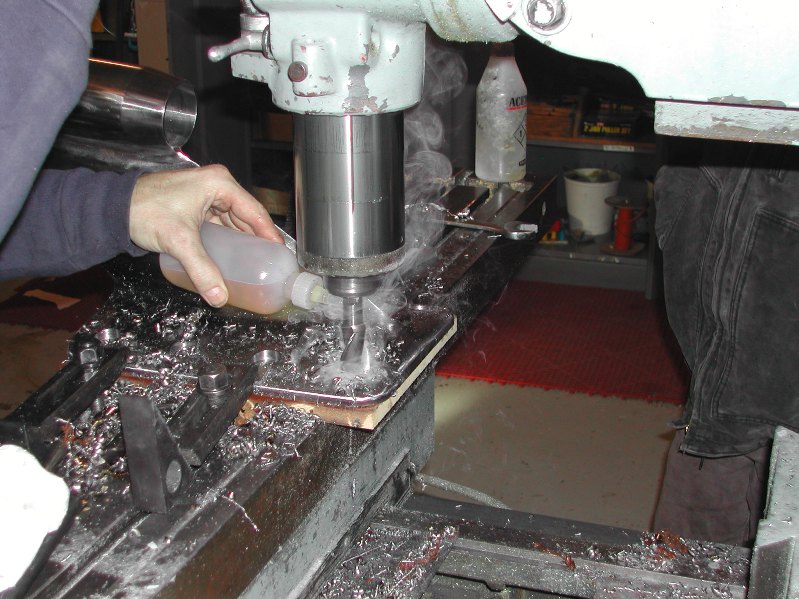

Wheeler on the mill...smokin'!
|
December 30
Do you think it will line up?
|
December 30

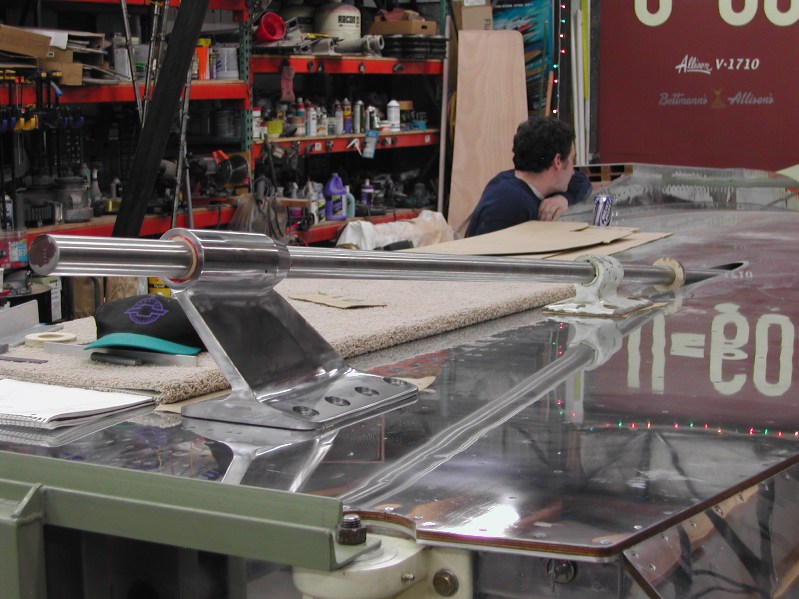

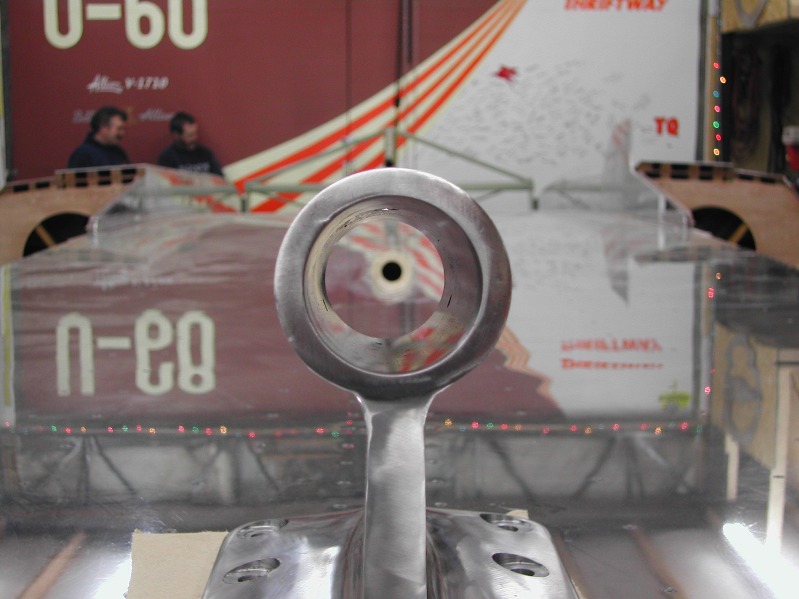

I dunno...let's make some bushings and put the shaft in to see!
|
December 30
Oh my....it DOES!
|
